Broan 164 Two-Bulb Heater With Fan and Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

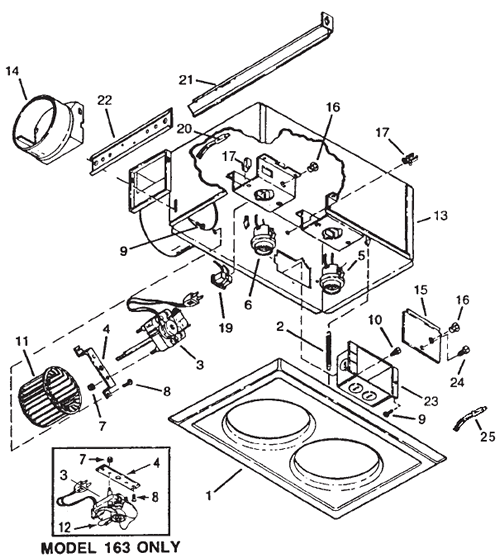

Broan 164 Two-Bulb Heater With Fan and Light Parts
Broan 164 Two-Bulb Heater With Fan and Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
not 164 COMPLETE NEW 164, ( MAY NOT FIT INTO OLD HOUSING-IC RATED)rough 14.25x8 3/8 x 6deep Grille 15 5/8 x 10.25 $97.13
not BR40 250 WATT INFERRED HEAT BULB $21.72
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S97010320 GRILLE PLASTIC DOUBLE BULB WITH COIL SPRINGS $46.06
2 S06170-00 GRILLE SPRINGS COIL 2-REQURIED $27.26
3C S97010254 MOTOR CW - 164-G,J,K,L,M (3 1/16 SHAFT) $59.22
3B S99080146 MOTOR CW - 164-B (2 5/8 SHAFT)
This product has been discontinued
3A S99080160 MOTOR CCW - 164A-C, 164A-D, 164-C, 164-D (2 5/8 SHAFT)
This product has been discontinued
4 S98003814 MOTOR MOUNTING BRACKET 164A-C, 164-C, 164-D, 164A-D $27.26
4 S98007352 BLOWER MOTOR MOUNTING BRACKET - 164-E, G, J,L,M $27.26
5 S97005241 LIGHT SOCKET - 164-A,B,C,D W/BLUE, WHIT LEADS $33.84
5 S97005242 LIGHT SOCKET- 164-A,B,C,D W/BLACK ,WHITE LEADS
This product has been discontinued
5 S99770033 LIGHT SOCKET- 164-E,G,J,K,L,M WITH RED, WHITE LEADS $27.26
5 S99271356 Light Socket with Black & White Leads $27.26
6 S99770032 LIGHT SOCKET - 164-E,G WITH BLACK, WHITE LEADS $4.04
6 S99271356 LIGHT SOCKET - 164-J,K ,L,M WITH BLACK WHITE LEADS $27.26
9A S97005908 BLOWER Assembly CW - 164-A, 164-B (INLCUDES KEY NOS.3,4,7 & 11,)
This product has been discontinued
9B S97006223 BLOWER ASSMEBLY CCW - 164-C, 164- C, 164-D, 164A-D (INCLUDES KEY. 3,4,7 & 11,)
This product has been discontinued
9C S97009796 BLOWER ASSEMBLY CW - 164-E,G,J,K,L,M (INCLUDES KEY NOS. 3,4,7 & 11,) $81.78
  n.l.a. SCROLL - 164A-C, 164-C, 164-A-D
This product has been discontinued
11 S97009759 BLOWER WHEEL - 164-E $10.16
11 S97010255 BLOWER WHEEL - 164-G,J,K,L,M $27.26
11 S99020124 BLOWER WHEEL (WHITE) - 164-A* OBSOLETED
This product has been discontinued
11 S99020140 BLOWER WHEEL (WHITE) - 164-B $27.26
11 S99020144 BLOWER WHEEL (BLACK) - 164A-C, 164-C, 164-D, 164A-D $27.26
14 S97003932 4" DAMPER/DUCT CONNECTOR 164A-C, 164-C, 164-D, 164A-D $27.26
14 S97009595 4'' DAMPER/DUCT CONNECTOR 164-E,G,J,K,L,M $27.26
15 S20050-09 OUTLET BOX COVER 164-E, G, J, K,L,M (REPLACED BY 98010583) $0.88
19 S99271323 FEMALE RECEPTACLE - 164-E,G,J,K,L,M $27.26
21 S98003036 MOUNTING BRACKET (4 REQUIRED.) $27.26
22 S98007763 SLIDE BRACKET CHANNEL - 2 REQUIRED $3.78
25 S99270832 THERMOSTAT FOR FAN (red leads) 164-E,G,J,K,L,M $27.26
25 S79270237 Thermostat for Lamps (white leads) for heat bulb $27.26
