Broan 192 High-Capacity Wall Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 192 High-Capacity Wall Heater Parts

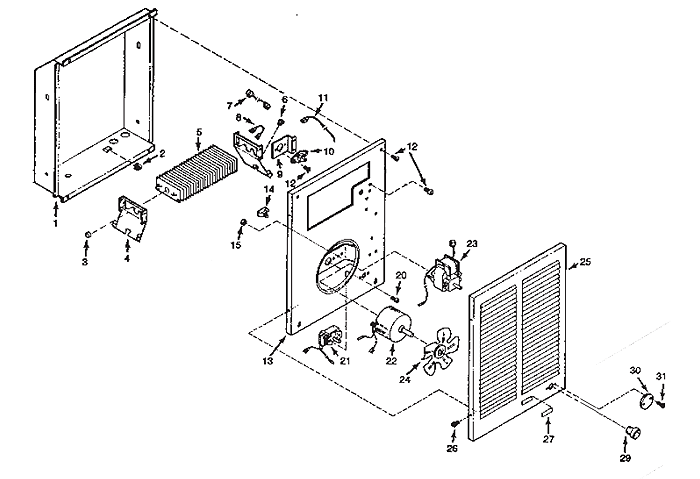

Broan 192 High-Capacity Wall Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  192 New Complete Production (will not fit into existing housing) g16 3/8w x 20.25 rgh16.25x20 240v 2000watts $376.40
0 87W Line Voltage Wall Thermostat - White $27.72
  85 Surface Mount Box $86.88
  S93150462 SECURITY COVER MOUNTING SCREW - #8-18 X 5/8" $33.84
3 S99030190 FAN DELAY F/3&4KW VEST HT $27.26
4 S98006989 ELEM BRAKET TER SD F/VST HT $11.16
5 S99270723 HTG ELEMENT F/3KW VEST HTR MODEL 194 $128.78
5 S97013858 HEAT ELEMENT F/4KW MODEL 198/192 $177.66
6 S99400061 BUSHING HEYCO SPLIT $1.75
7 S97008688 WIRE ASSY-38" PROT-ELE $27.26
8 S97008690 WIRE ASSY BLK JUMPER-HTR $27.26
9 S97013945 THERMAL OVERLOAD VEST (#'S 9, 10 & 12), $42.30
14 S93270619 WIRE HARNESS POLYCLAMP $0.68
21 S99030192 ADJUSTABLE THERMOSTAT F/192-A,B, 194-A,B,C, 198-A,B,C $76.14
21 S99030324 ADJUSTABLE THERMOSTAT /192-C, 194-D, 198-D $76.14
13 S97008683 MOTOR MOUNTING BRACKET & PLATE $40.43
22 S99080251 MOTOR F/4KW VEST HTR MODEL 198 $112.80
23 S99080249 MOTOR F2 & 3KW VEST HTR MODELS 190, 192, 194 $82.80
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
24 S99020255 BLADE,PLSTC F/190 HTRS $27.26
25 S97013822 GRILLE VEST HEATER WHITE 20 1/2 x 163/8 x 1 1/4 $278.24
27 S99090683 GRILLE LOGO $23.40
30 S99110687 SECURITY CVR F/VEST HTRS $27.26
26 S99150478 GRILLE MOUNTING SCREW - #8-18 X 3/8" $27.26
30 S99360136 KNOB F/VEST HEATERS $27.26
31 S97008743 PARTS BAG KNOB/SCREWS/CAP $27.26
