Broan 273003 Down Draft Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

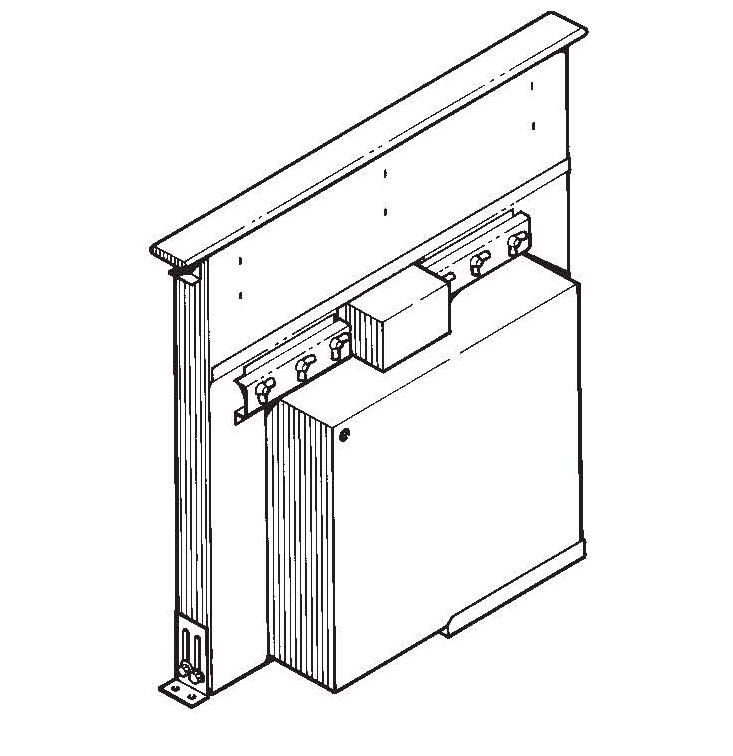

Broan 273003 Down Draft Range Hood Parts

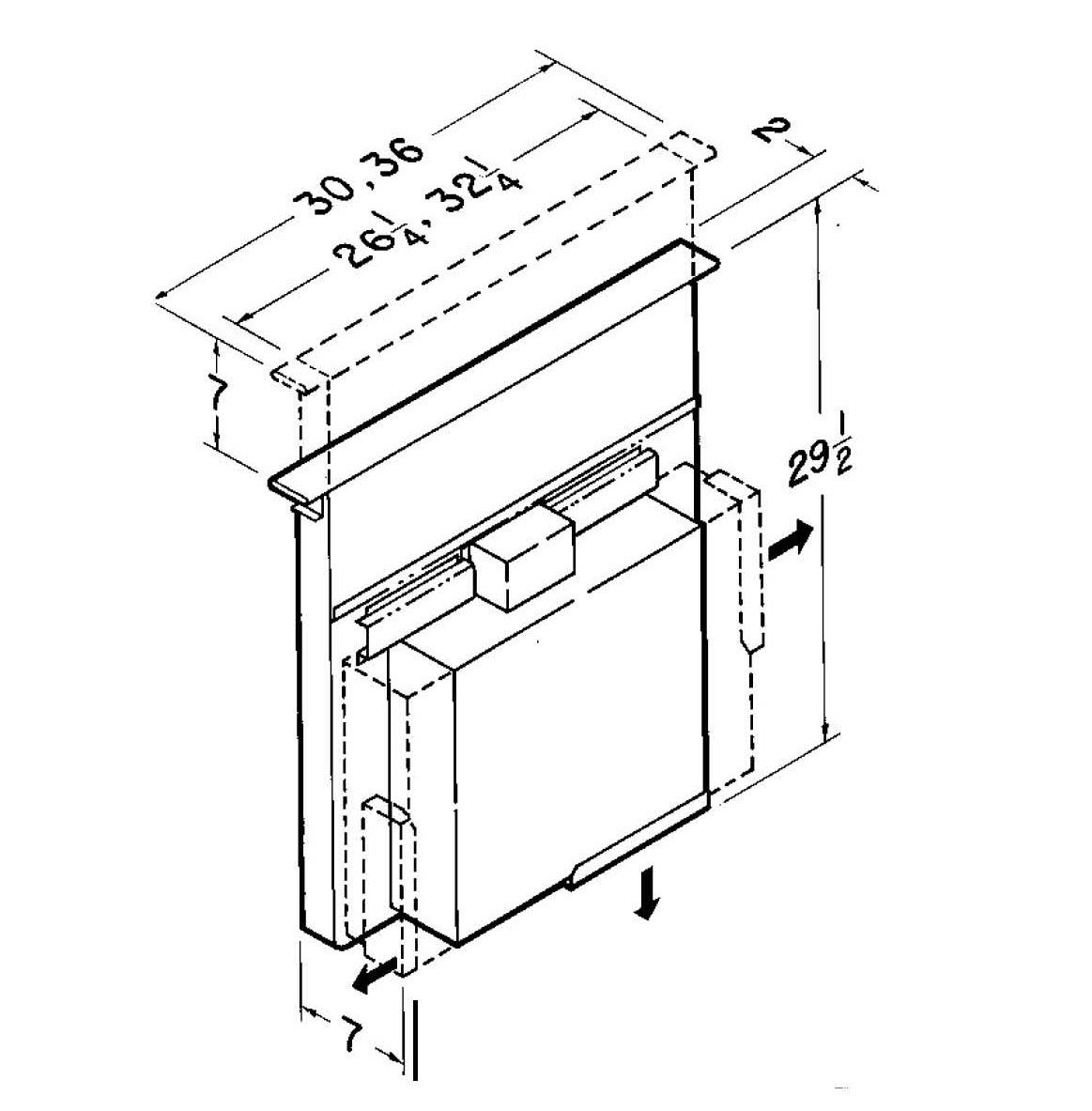

Broan 273003 Down Draft Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  273003 New Production Complete down draft 500 cfm $923.65
  273023C Optional Black Cover 30" $73.72
  273001C Optional Cover White 30" $73.32
0 HCK44 Cord Kit with 6' cord and plug $42.30
  S99111236 FINGER TOUCH BUTTON COVER - WHITE 1" X 1" SQUARE $33.84
  S99111235 FINGER TOUCH BUTTON COVER - BLACK (REPLACES GREY) 1" X 1" SQUARE $27.26
  S97011325 CHIMNEY ASSEMBLY WITH SLIDE - 2730 $125.28
  S97011449 TOP COVER - BLACK - 2730 - INCLUDES RIGHT AND LEFT SIDE BRACKET & BUTTON COVER $125.02
  S99111230 FINGER TOUCH BUTTON COVER - BISCUIT- 1" X 1" SQUARE $33.84
  S97009786 ALUMINUM FILTER SET (3 7/8 x 8 & 3 78 x 10 3/8) $42.30
  S98008144 AIR BOX COVER- 2730 $26.50
  S98008158 AIR BOX OPENING COVER - 2730 $19.87
  S99080362 MOTOR WITH CAPACITOR $560.24
  S97011311 COMPLETE BLOWER ASSEMBLY $484.10
  S97010994 DOWNDRAFT HOUSING- 2730 $206.30
  S97011259 RIGHT SIDE TOP BRACKET FOR TOP COVER $33.84
  S99100484 MOTOR ISOLATOR (3 REQUIRED)
This product has been discontinued
  S97011260 LEFT SIDE TOP BRACKET FOR TOP COVER $33.84
  S99271000 CAPACITOR
This product has been discontinued
  S99150491 SCREWS USED TO ATTACH SIDE & SWITCH BRACKET TO TOP COVER / CHIMNEY ASSEMBLY - #8-18 x 3/8" - 6 REQUIRED $18.00
  S99020247 BLOWER WHEEL $124.08
  S97011238 SWITCH ASSEMBLY, UP/DOWN $33.84
  S99260491 LOCK NUT FOR FAN SPEED SWITCH - 3/8" -32 $27.26
  S99360165 KNOB FOR FAN SPEED CONTROL SWITCH $27.26
  S97010714 SPEED CONTROL $117.50
  S99360165 KNOB FOR SPEED CONTROL $27.26
  S99150488 SCREW USED TO ATTACH SWITCH COVER TO SIDE OF CHIMNEY- #8-18 x 1/2" - 2 REQUIRED $27.26
  S99710032 PLASTIC SPACER - 3 REQUIRED $27.26
  S97011927 SPEED CONTROL WITH UP/DOWN SWITCH $153.22
  S97009972 LOWER MICRO SWITCH ASSEMBLY $59.22
  S99080590 GEAR MOTOR $171.08
  S97011500 GEAR MOTOR BRACKET $50.76
  S99080295 GEAR MOTOR $92.00
  S99160225 SCREW USED TO ATTACH GEAR MOTOR TO BRACKET- #8-32 x 1/2" - 4 Required $0.72
  S99380633 U BOLT $27.26
  S99260437 NUT FOR U BOLT - 2 REQUIRED $0.72
  S97011443 GEAR MOTOR COVER $27.26
  S99170245 SCREW USED TO ATTACH GEAR BOX COVER &AIR BOX COVER TO DOWN DRAFT HOUSING - #8-18 x 3/8" - 19 Req. $18.00
  S98007642 BACK-UP PLATE FOR U-BOLT $27.26
  S97010993 CORD $39.48
  S99110850 SLIDE STRIP $27.26
  S98008159 LEG SUPPORT $27.26
  S99150536 SCREW USED TO ATTACH LEVELING LEG TO DOWNDRAFT HOUSING - 1/4" - 20 x 5/16" - 5 REQUIRED $27.26
  S97011322 TOP, STAINLESS $103.40
  S99250927 WASHER FOR LEVELING LEG SCREW - 1/4" $18.00
  S97011449 TOP, BLACK $125.02
  S98008150 SCROLL BOX COVER $62.71
  S97011447 TOP, WHITE $95.88
  S99110880 INSTALLATION TEMPLATE $18.00
  S97011305 PARTS BAG $27.26
  ARP310 AIRFLOW REDUCER
This product has been discontinued
  S99100544 Foam Seale $19.80
  S99090905 CAP $46.06
