Broan 356BK 1600Cfm Black Attic Ventilator Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 356BK 1600Cfm Black Attic Ventilator Parts

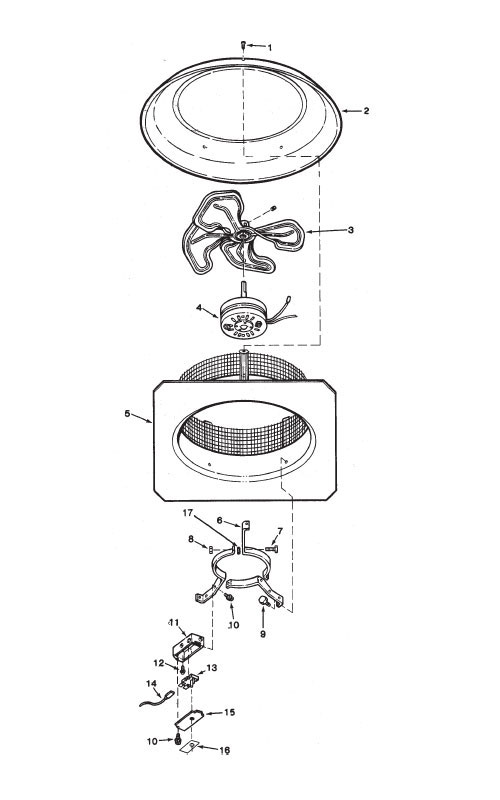

Broan 356BK 1600Cfm Black Attic Ventilator Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown 356BK NEW COMPLETE 356Bk, MAY NOT FIT INTO EXISTING HOUSING 1600CFM $252.78
  S98006746 COVER $27.26
  S98006877 COVER $27.26
2 S99111462 PLASTIC BROWN (23 1/4 Round Dome) $95.20
2 S98005419 ALUMINUM DOME (23 1/4 Round Dome) $131.60
2 S99111463 PLASTIC DOME, BLACK (23 1/4 Round Dome) $90.24
3 S97006971 BLADE $84.60
4 S97015612 MOTOR 1600 CFM (G AFTER 2001) $497.26
4 S97009318 MOTOR (A,B,C,D,E,F)
This product has been discontinued
6 S98008298 MOTOR MOUNTING BRACKET, 3 - REQUIRED $27.26
11 S98009886 WIRING BOX $27.26
13 S97008413 THERMOSTAT $51.70
14 S97005329 WIRE LEAD ASSY ATTIC FAN $33.84
15 S98009886 WIRING BOX COVER (D,E,F,G) $27.26
15 S98009757 WIRING BOX COVER (356BK-A, 356BK-B) $27.26
41 S98009757 WIRING BOX $27.26
  S99150493 MOUNTING SCREW - #8-18 X 1/2" $33.84
