Broan 510 Room Ventilation Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 510 Room Ventilation Fan Parts

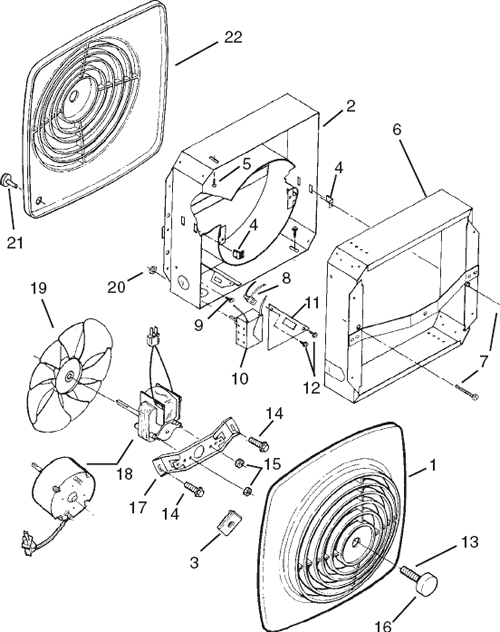

Broan 510 Room Ventilation Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  510 Brand New 510
This product has been discontinued

  S99010271 Aluminum Grease Filter $27.26
  S97011886 Parts Bag $18.00
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S97011851 Grille Center Mount - 510-B, C, (13.5 square) $52.64
1 S97014186 Grille, Replaces 2 Screw Mount - 510-A, (13.5 square)
This product has been discontinued

8 S99270748 Receptacle $18.00
10 S99030132 Fan Speed Switch $84.60
11 S98006081 Outlet Box Cover $1.76
13 S99160322 Grille Mounting Screw, 3'’ - 510-A,
This product has been discontinued

13 S99420579 Grille Screw - 510-B, C, $27.26
13 S99260434 Grille Mounting Stud Sheet Metal Nut $27.26
14 S99150479 Motor Bracket Mounting Screw $27.26
15 S99260425 Motor Mounting Nut for barrel motor $2.40
16 S97011918 Grille Mounting Knob, 510-B, C, $18.00
17 S98006066 Motor Mounting Bracket $27.26
18 S99080596 Motor, 510-A,B,C (ja2p258n cw 1700rpm,5 16"shf) $106.22
19 S99020166 Blade - 510-A, B (cw plastic) $27.26
19 S99020271 Blade 510-C (cw plastic) $27.26
21 S99360218 Knob, F/Switch 510, (Stem is 1-3/32" long). $27.26
22 S97011852 Grille with Hole f/Switch Center Mount - 510-B, C, $56.40
22 S97015045 Grille with Hole f/Switch replaces 2 Screw Mount - 510-A, $99.00
  S97013827 Grille Kit $191.76
