Broan 637004 Stainless Steel Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 637004 Stainless Steel Range Hood Parts

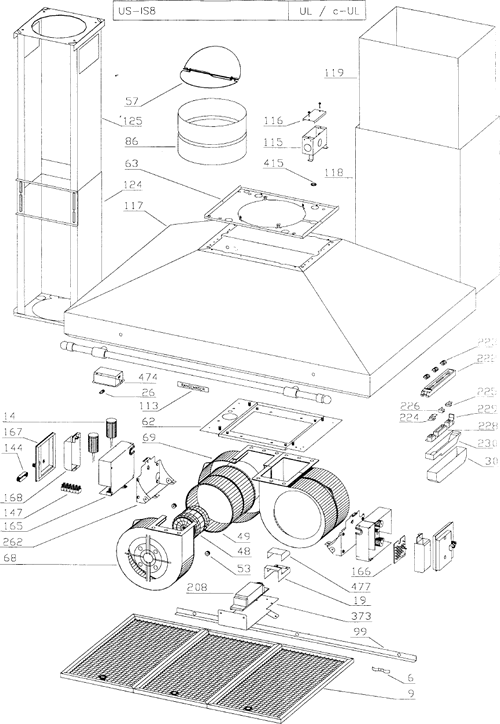

Broan 637004 Stainless Steel Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 SB03292425 Front Round Grey Finger Tab For Filter- 637004-A $2.50
 SB03292426 Back Round Grey Finger Tab For Filter- 637004-A $2.50
 S99091031 Logo Sticker - Will Read "Broan Lite" $5.20
 SB08092501 Metal Damper Duct Connector - 637004-C - For Units Built After 09/07 $35.86
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
*637004 Complete New Unit $2,539.15
 SB02300782 Fuse 4-Amp. 5Mm X 20Mm $10.12
 SB06001772 Complete Blower Assembly - Includes Motor & Wheel 637004-A (Includes Key Nos. 48,49,53,68,42) $549.60
 SB06002007 Complete Blower Assembly- Includes Motor & Wheell 637004-B (Includes Key Nos. 48,49,53,68,42) $297.36
 SB06002008 Complete Blower Assembly - Includes Motor & Wheel637004-B,C (Includes Key Nos. 48,49,53,68,42) $403.36
 SB06106297 Complete Switch Assembly, 637004-A (Includes Nos. 222,223,224,225,226,228,229,230)S Ke $50.45
 SB06106298 Control Board Assy. W/Circuit Board 637004-A (Includes Key Nos.144,147,165,166,167,168) $25.63
 SB06107638 Complete Switch Assembly, 637004-B,C (Inclkudes Key Nos. 222,223,224,225,226,228,229,230) $47.90
 SB080810004 Parts Bag $4.28
 SB080810199 Complete Damper Duct Connector 637004-A (Metal) (Includes Key Nos. 56 & 57) $62.75
 SB008085018 Complete Damper Duct Connector 637004-B,C (Plastic) (Includes Key Nos. 56 & 57) $42.30
6SB02000191 Filter Spring 637004-A Only $4.10
9SB08087141 Grease Filter 637004Ex-B,C -3 Required (Sold Each), 9-3/16" X 15-5/16" (Flip Down Latch Pull) $49.82
9SB08087485 Grease Flour 637004-A -3 Required,(Sold Each) 10-1/8" X 15-1/4" (Round Finger Pull) $42.92
9SB08087599 Grease Filter 637004-B -3 Required,(Sold Each) 9-3/16" X 15-5/16" (Slide Lacth Pull) $52.29
14SB02300233 Motor Capacitor 637004-B,C $19.76
14SB02300730 Motor Capacitor 637004-A $30.50
26SB02300891 Halogen Bulb (G4 Base, 12 Volt, 20 Watt) $9.12
37SB02300787 Heat Sentry 637004-B,C $41.08
48SB02310094 Motor 637004-A
Discontinued, no longer available. Please call for possible alternatives.
48SB02310201 Motor 637004-B,C $130.96
48SB03295071 Blower Wheel 2-Required 637004-B, C $16.18
49SB03295076 Blower Wheel 2-Required 637004-A $25.96
113SB03202433 Rangemaster Logo( Replaced Byv03493) $4.88
118SBE3403622 Lower S.S. Flue Both Units $184.43
119SBE3403623 Upper S.S. Flue Both Units $169.15
124SB03120185 Lower Skeleton $146.30
125SB03120186 Upper Skeleton $156.22
166SB08086101 Control Board Only-637004-A (Replaced Byb08080101) $7.40
166SB08086668 Control Board For Heat Sentry - 637004-B, 637004Ex-B $69.24
208SB02300729 Transformer 637004-A, $119.68
208SB02300792 Transformer 637004-B,C $54.30
223SB03292294 Buttons For Switch (3-Required) $4.00
228SB08086266 Switch Circuit Board Only, 637004-B,C $15.18
474SB02300719 Lamp Hsg. W/ Hinged Lens 637004-A, (Rectangle Shape) $35.66
474SB02300789 Lamp Hsg.& Lens 637004-B,C (Round Shape) $15.46
