Broan 673 Updraft Exhaust Fan 6"Duct Parts

Listed below are the parts available for this model.

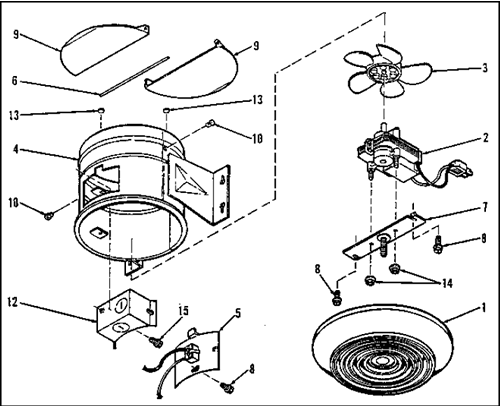

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 673 Updraft Exhaust Fan 6"Duct Parts
Broan 673 Updraft Exhaust Fan 6"Duct Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  673 Complete New 673
This product has been discontinued

  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S99110454 Grille $27.26
2 S99080199 Motor ccw $49.82
3 S99020125 Blade ccw $27.26
4 S97005321 Housing $15.62
5 S99270748 Receptacle $18.00
6 S98004935 Damper Rod $27.26
7 S97016802 Motor mounting bracket $27.26
7 S99170245 Motor Bracket Mounting Screw $18.00
8 S99260428 Motor Mounting Nut $18.00
9 S98004934 Damper Flap 2-Required $27.26
10 S99100379 Damper Rod Bushing 2-Required $18.00
12 S98005329 Outlet Box $4.57
12 S98004932 Outlet Box Cover $3.92
13 S99100405 Damper Pad 2-Required $3.31
