Broan 674 Bathroom Ventilation Fan Parts

Listed below are the parts available for this model.

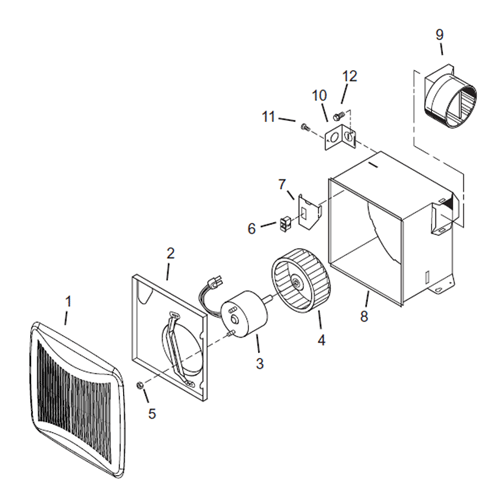

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 674 Bathroom Ventilation Fan Parts
Broan 674 Bathroom Ventilation Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99140192 Grille Spring - 2 Required $18.00
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 FG500NS Bathroom Exhaust Fan Grille/Cover w/ LED Light (11 x 9 3/4) $40.18
0 FG600S Bathroom Exhaust Fan Grille/Cover w/ LED Light (FG600S) $40.18
0 FG800SPKS Exhaust Fan Grille/Cover w/ LED Light 11" x 9-3/4" x 2" grille $86.62
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
  FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.60
0 S97015157 Blower Assembly (Includes Key #'S 2 Thru 5) $109.98
0 S97015170 O.B. Cover/Panel With Receptacle** $67.68
1 S97016798 Fan Grille F/674 (10 1/8 X 10 1/2) $32.90
2 S97014926 Plate, For Motor F/674 $30.60
3 S99080517 Motor F/674 $75.20
4 S99020276 Plastic Blower Wheel
This product has been discontinued

5 S99260425 Motor Nut - 2 Required $2.40
6 S99270982 Receptacle, Black $18.00
7 S98009611 Wire Panel F/J-Can Fan $27.26
8 S97014922 Housing F/J Can $34.78
9 S97003932 4 Inch Damper/Duct Connector $27.26
10 S98008868 Electrical Knockout Wiring Plate $18.00
11 S99170245 Screw, #8-18 x 3/8" $18.00
12 S99150471 Screw, #10-32 x 1/2" Hex Washer Head $18.00
