Broan 680 Ventilation Bath Fan With Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 680 Ventilation Bath Fan With Light Parts

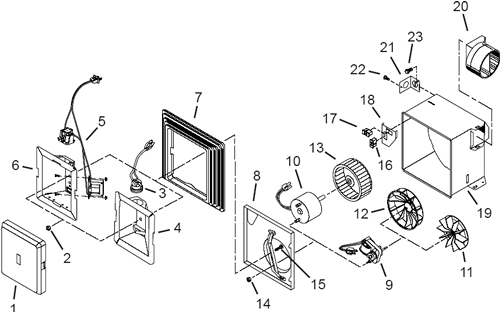

Broan 680 Ventilation Bath Fan With Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97014094 Grille & Lens - Fits All Units (Includes Key Nos. 1 & 7) $38.54
0 FG500NS Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 spring gap 7") $40.18
0 FG600S Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 spring gap 7") (FG600S) $40.18
0 FG800SPKS Bluetooth Exhaust Fan Grille/Cover w/ LED Light 11" x 9-3/4" x 2" grille $86.62
  FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.80
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Bluetooth Upgrade Grille/Cover w/ LED Light (11" x 9-3/4" x 2" grille ) $86.63
7 S97013974 Grille Only - 680-A, 2680F-A, $27.26
1 S97013578 Light Lens
This product has been discontinued
2 S97005316 Acorn Nut - (For Attaching Grille/Light Reflector) $27.26
2 S99150582 Grille Stud/Screw 680-A, 2680F-A, $33.84
3 S99770118 Light Socket with Male Plug $27.26
4 S97014211 Light Reflector Only 680-A
This product has been discontinued
6 S97014212 Light Reflector With Socket 707-A, B (Includes Key Nos. 3 & 4) $27.26
8 S97014926 Motor Plate $30.60
9 S99080517 Motor 680-A, 2680F-A, $75.20
10 S97015157 Motor Assembly With Blower Wheel & Bracket 680-A, 2680F-A, (Includes Key Nos. 8,10,13,14,&15 ) $109.98
11 S99020276 Plastic Blower Wheel
This product has been discontinued
14 S99260425 Motor Nut - 2 Required $2.40
  S97015171 O.B. Cover/Panel With Receptacles 680-A, 2680F-A, (Includes Key Nos. 16,17 &18) $27.26
20 S97014185 4" Damper/Duct Connector $27.26
21 S98008868 Electrical Knockout Wiring Plate $18.00
17 S99270982 Receptacle - Black $18.00
18 S99270981 Light Receptacle, White $27.26
23 S99150471 Screw, #10-32 x 1/2" Hex Washer Head $18.00
22 S99170245 Screw for Attaching Electrical Knockout Plate - #8-18 x3/8" $18.00
