Broan 685 Ventilation Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 685 Ventilation Fan/Light Parts

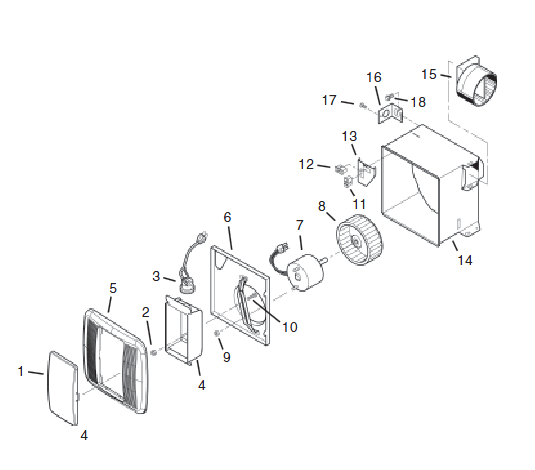

Broan 685 Ventilation Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 S99150582 Grille Screw F/685 $33.84
0 S97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $27.26
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S99111331 Light Lens (see 97014094 or 85315000)
This product has been discontinued

2 S97005316 Acorn Nut - (For Attaching Grille/Light Reflector) $27.26
3 S99770118 Light Socket with Male Plug $27.26
4 S98010226 Light Reflector
This product has been discontinued

5 S99111330 Grille F/685 3 left and slightly yellowed from agae
This product has been discontinued

5 S85315000 Lens & Grille (12 1/4 x 10 3/4 x 1 1/4) alternative replacement $85.54
5 S97014094 Grille/Lens (10 5/8 X 11.25) alternative replacement $38.54
7 S97016839 Blower Assembly (Include Key #'S 6 Thru 10)
This product has been discontinued

6 S97016838 Plate Motor
This product has been discontinued

7 S99080517 Motor Only $75.20
8 S99020276 Plastic Blower Wheel
This product has been discontinued

9 S99260425 Motor Nut - 2 Required $2.40
11 S99270982 Receptacle, Black-C $18.00
12 S99270981 Light Receptacle, White-C $27.26
13 S98009612 Outlet Cover/Wire Panel (Without Receptacles) $18.00
14 S97014922 Housing F/J Can $34.78
15 S97014185 4" Damper/Duct Connector $27.26
16 S98008868 Electrical Knockout Wiring Plate $18.00
17 S99170245 Screw for Attaching Electrical Knockout Plate - #8-18 x 3/8" $18.00
18 S99150471 Screw, #10-32 x 1/2" Hex Washer Head $18.00
