Broan 712 Exhaust Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 712 Exhaust Fan/Light Parts

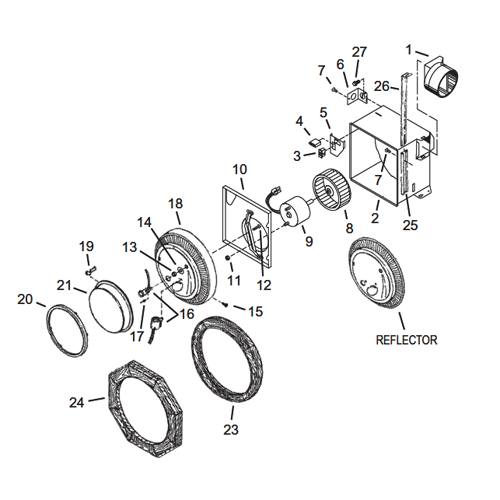

Broan 712 Exhaust Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97003932 4 Inch Damper/Duct Connector (c) $27.26
  S99150538 Grille Mounting Screw - 712-A,B,C - #8-18 x 2" - 2 Required $27.26
  S99420470 Grille Mounting Plastic Nut - 712-A,B,C - 2 Required $27.26
  S97005316 Grille Mounting Acorn Nut - 712-D - #10-24 $27.26
  S99150583 Grille Mounting Screw / Stud - 712-D - #10-24 x 1-1/4" $18.00
  S99250399 Grille Mounting Washer - 712-D $1.53
  S99100399 Rubber Motor Spacer - 712-A,B,C - 2 Required $18.00
  S99260425 Motor Mounting Nut - #8-32 - 2 Required $2.40
  S99770085 4-Pin Receptacle for Light & Night Light - 712-D
This product has been discontinued

1 S97014185 Damper / Duct Connector - 4" Round $27.26
3 S99270982 Receptacle, Black $18.00
4 S99270479 White Receptacle for Light & Night Light - 712-A,B,C - 2 Required $27.26
8 S97009755 Blower Wheel 712-A,B,C
This product has been discontinued

8 S99020276 Blower Wheel 712-D
This product has been discontinued

9 S97009752 Motor 712-A,B,C ( obsolete see 99080517)
This product has been discontinued

9 S99080517 Motor 712-D $75.20
9 S97015192 Motor Assy. 710 Thru 722-D (Includes Key Nos. 8,9,10,11 & 12) $95.88
9 S97017066 Motor Assy 710 Thru 722, Revisions -A,B,C(Includes 8,9,10,11,12) $102.46
16 S99770027 100 Watt Socket 712-A,B,C
This product has been discontinued

18 S97015174 Grille F/712-D
This product has been discontinued

19 S99140155 Spring Clips for Glass Lens - 2 Required All Units
This product has been discontinued

20 S99390106 Retaining Ring 712-White
This product has been discontinued

25 S98003036 Housing Mounting Bracket - 4 Required $27.26
