Broan 750 Fan/Light/Night-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

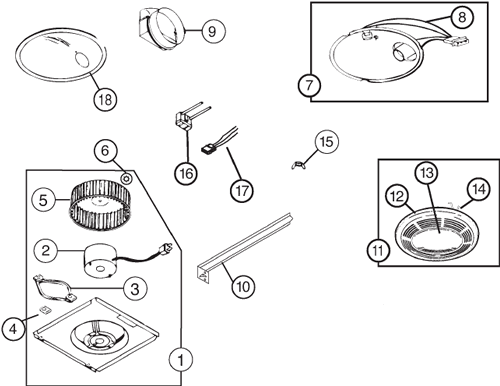

Broan 750 Fan/Light/Night-Light Parts breakout large

Part Key	Part Number	Description	Unit Price
	750	New Complete 750 (housing 9x9 15" round grille)	$217.29
	S99260425	Motor Mounting Nut (2 Required & Sold Individually)	$2.40
1	S97017703	Blower Assemble (includes key #'s 2 to 6)	$154.16
3	S32787000	Rubber Motor Isolation - 683-A, B, 750, 751, 752	$27.26
4	S32788000	Ground Clip - 683-A, B, 750, 751, 752 This product has been discontinued
5	S100603000	Blower Wheel for (splined motor) Cw, 6-1/8" X 2" This product has been discontinued
5	SNT5901A000	Blower Wheel - White Plastic, CCW, 6-1/8" X 2"	$27.26
6	S63007000	Push Nut Retainer for Wheel	$0.86
8	S85950000	Lamp Sockets-100 & 7 Watt	$27.26
9	S101183000	Damper Duct Connector	$27.26
11	S0461B000	Grille Assemble (replaced by 97017702) This product has been discontinued
8	S89248206	Reflector Only (replaced by NT10104900)	$3.86
10	S44388000	Housing Mounting Bars 4-Required	$33.84
13	S85937000	Lens 9 5/8 x 1/2" deep, glass thick round ( for 2008 and newer only)	$24.69
11	S97017702	Grille Round 15" White Plastic w/Glass Lens	$101.52
13	S61753000	Lens - Thin Glass 9 1/2" Round X 3/4" ( Not Like The Old Glass)	$56.40
16	S99270982	Black Receptacle - 683-A, B - 752	$18.00
17	S99270981	Plug Recp Black-c	$27.26
	S99271426	Night Light	$18.00
	SNT0444A000	Spring Set This product has been discontinued
