Broan 757PT Fan/Light Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 757PT Fan/Light Exhaust Fan Parts

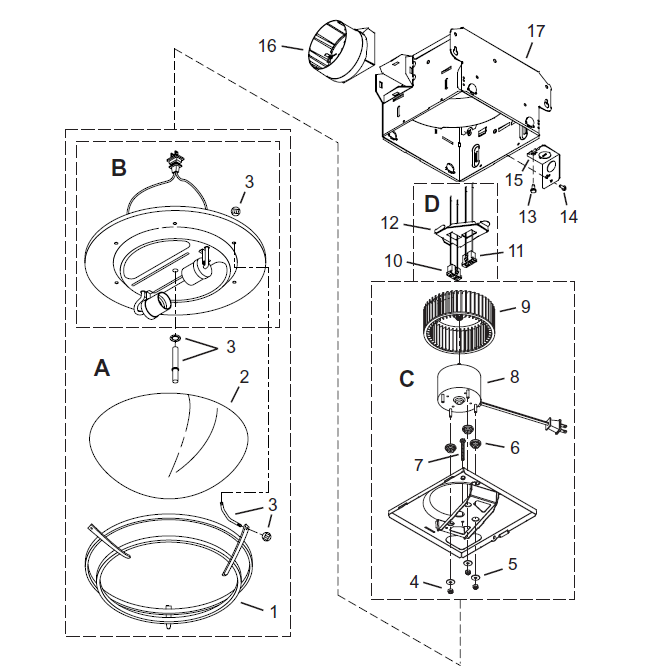

Broan 757PT Fan/Light Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
A S99525300 Light Fixture F/757Pt
This product has been discontinued

B S97016711 Grille Pan F/757Pt
This product has been discontinued

D S97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $27.26
C S97016671 Blower Assembly Modified replacment
This product has been discontinued

3 S99150618 Grille Mounting Screw $18.92
4 S99260558 Motor Mounting Nut $18.00
5 S97016630 Motor Mounting Bracket $9.61
5 S99250959 Motor Mounting Washer $18.00
1 S97016712 Globe Trim F/757Pt $25.31
2 S97016714 Glass Globe F/757 Models
This product has been discontinued

6 S99100491 Rubber Motor Isolator, 4-Required $27.26
8 97016722 Motor Modified - #JA2C55 ccw 1/4 d 1 1/4length $95.74
9 S99020276 Plastic Blower Wheel
This product has been discontinued

10 S99270981 Light Receptacle, White $27.26
11 S99270982 Receptacle fan - Black $18.00
12 S98009612 Outlet Cover/Wire Panel (Without Receptacles) $18.00
15 S98008868 Electrical Knockout Wiring Plate $18.00
  S99150471 Ground Screw $18.00
16 S97014185 4" Damper/Duct Connector $27.26
