Broan AP100 9" Pro Style 440 Cfm Range Hood Parts

Listed below are the parts available for this model.

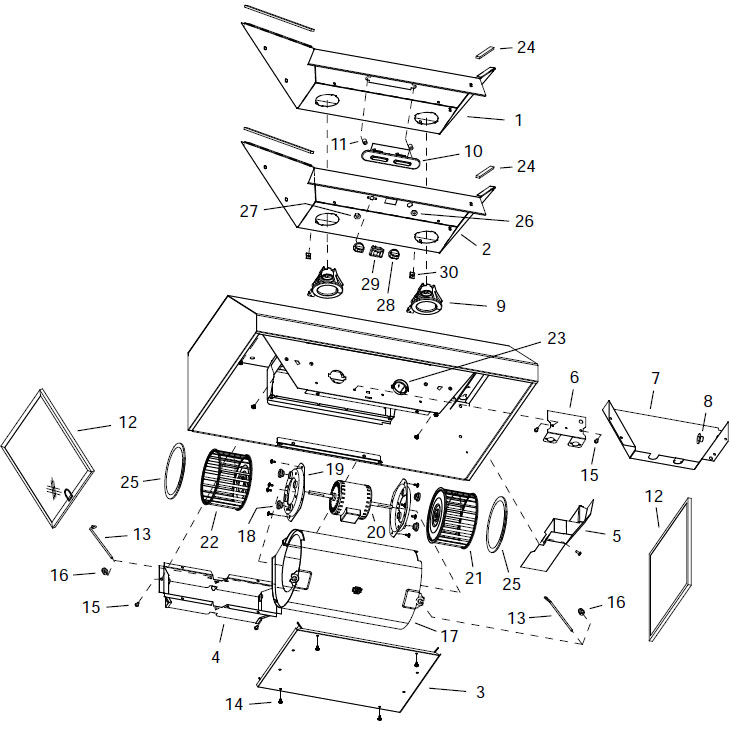

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan AP100 9" Pro Style 440 Cfm Range Hood Parts
Broan AP100 9" Pro Style 440 Cfm Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97007662 Non-Duct Filter Kit - Inludes 2 Filters - 10" x 11-3/4" $84.60
  SV05921 LED (LED MR16, GU10, Base 50 W) $32.40
  S97016438 Light Switch $33.84
  S600348 Knob in Black, Sold Individually $27.26
  S600349 Knob in White, Sold Individually $27.26
  S97007542 Blower Assembly - Includes Motor, Blower Wheels, & Scroll Housing $412.20
  S98010342 Motor Ring Inlet $5.11
  S97005543 Parts Bag $27.26
0 HCK44 Cord Kit with 6' cord and plug $42.30
2 S97017324 FEATURE PANEL AP BLACK $71.05
2 S97017325 FEATURE PANEL AP WHITE $78.34
2 S97017326 FEATURE PANEL AP SILVER $137.38
3 S97007631 Bottom Cover - Silver (For Stainless Hood)
This product has been discontinued

3 S97007895 Bottom Cover - White
This product has been discontinued

3 S97009517 Bottom Cover-Black
This product has been discontinued

4 S97017429 DAMPER ASSEMBLY $56.40
5 S97007656 Outlet Box Cover $31.02
6 S97017428 THERMOSTAT ASSENBLY
This product has been discontinued

7 S98006546 LIGHT SOCKET COVER DLX PT $33.84
9 S99271346 LIGHT SOCKET ASSEMBLY $42.30
12 S97017455 ALUMINUM FILTER SET (2 NEEDED) $51.70
12 S97017456 ALUMINUM FILTER SET W MICROBAN (2 NEEDED) $67.68
13 S99420464 Blower Mounting Rod $27.26
16 S99260476 Mounting Rod Nut $27.26
17 S97007313 BLWR WLDMNT AUTO BRN 500 $49.82
18 S99100491 Rubber Motor Isolator, 4-Required $27.26
19 S98005212 Motor Retaining Ring 2-Required $27.26
20 S99080597 MOTOR $116.56
21 S99020142 WHEEL 5 3/4N STRIP TYPE C $42.30
22 S99020143 WHEEL 5 3/4N STRIP TYPE C $52.64
23 S99400055 HEYCO SNAP BUSH SB 150 $3.82
24 S99500323 PVC FOAM .187X.375X10.980 $27.26
29 S97016970 SWITCH 2 PACK ECON HOOD BLACK $42.30
29 S97016971 SWITCH 2 PACK ECON HOOD WHITE $27.26
31 S99030132 Fan Speed Switch $84.60
  S99770115 WIRE HARNESS $120.32
