Broan BCDF136SS Under-Cabinet Range Hood, 375 Max Blower

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

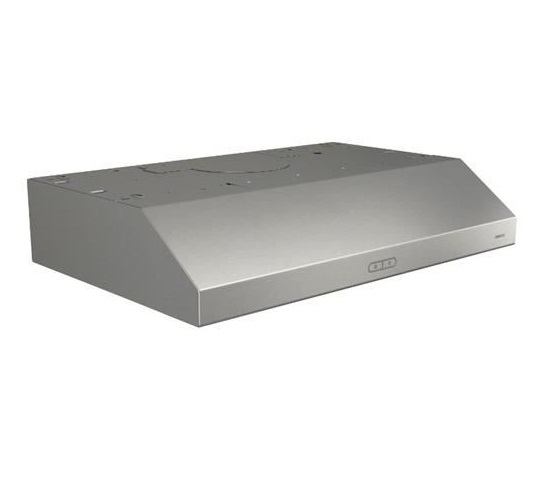

Broan BCDF136SS Under-Cabinet Range Hood, 375 Max Blower

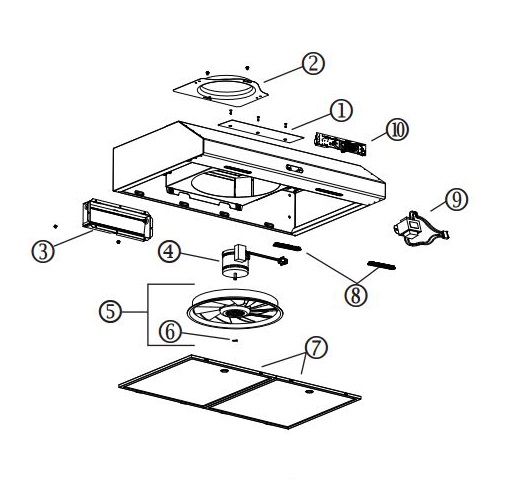

Broan BCDF136SS Under-Cabinet Range Hood, 375 Max Blower breakout large

Part Key	Part Number	Description	Unit Price
	BCDF136SS	Complete New Unit	$335.00
	HAWRK3	Low voltage wiring kit for ADA application	$51.89
1	S97020031	Recirc. Cover Plate, Stainless Steel (Incl. Screws)	$27.26
2	SR680508	7'' Round Duct Plate (Including Screws)	$37.60
3	S97020534	3¼” X 10” Damper Assembly (Including Screws)	$27.26
4	S97020408	Blower Motor (Including 4 Screws)	$107.16
5	S97020407	Fanpeller (Including Item 6)	$51.70
6	SR99420635	Clip For Fanpeller	$27.26
7	S99010434-003	Grease Filter - Micro Mesh - Type C2 (Set Of 2)	$67.68
7	SS97020467	Grease Filter - Non ducted 36" - Type D2 (Set Of 2)	$48.00
8	S97020444	Led Module (Pair)	$84.60
9	S97021392	Transformer 24 V 18 Va (With Screws)	$67.68
10	S97020431	Captouch Control, Stainless (With Screws)	$186.12
10	S97020433	Captouch Control, Black (With Screws)	$166.38
	S97020452	Wire Harness	$33.84
	S97020360	Parts Bag	$27.26
	S97020466	Non-Ducted Filter 30"- Type Xc (Set Of 2)	$46.06
	S97020467	Non-Ducted Filter 36" - Type Xd (Set Of 2)	$51.70
	S97020468	Non-Ducted Filter 42"- Type Xe (Set Of 2)	$67.68
	S99527587	Non-Ducted Filter Clip Kit (Includes 4 Clips) This product has been discontinued
	S97020470	Easy Install Kit (Including Hardware)	$42.30
*	BP87Q	7" foam quiet damper/ hood	$12.59
	S97020443	REMOTE CONTROL ASSEMBLY (SRV)	$164.50
