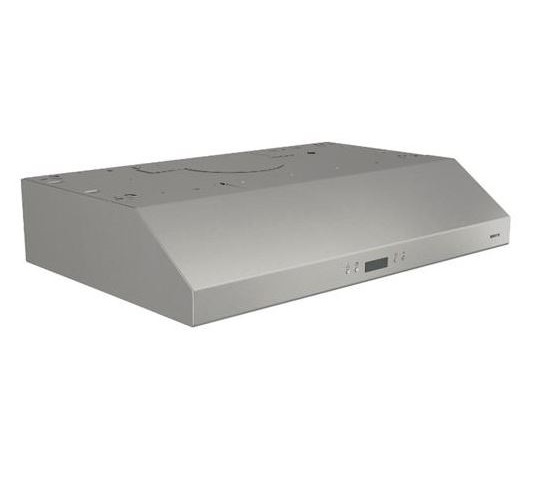

Broan BCDJ130SS Rangehood Stainless 30" Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM

Listed below are the parts available for this model.

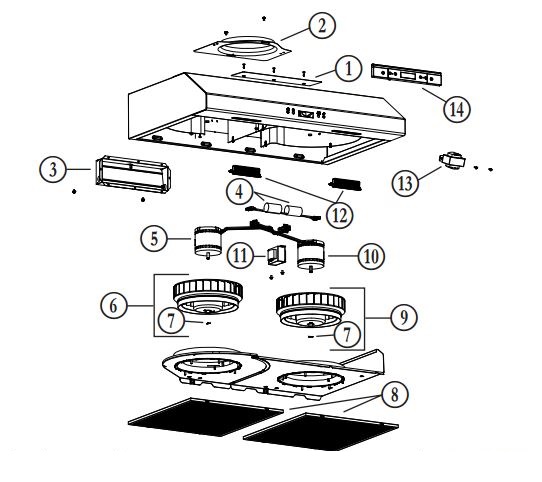

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan BCDJ130SS Rangehood Stainless 30" Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM
Broan BCDJ130SS Rangehood Stainless 30" Under-Cabinet Range Hood w/ Heat Sentry®, 400 CFM breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BCDJ130SS Complete New Unit $489.00
2 SR680508 7'' Round Duct Plate (Including Screws) $37.60
3 S97020534 3¼” X 10” Damper Assembly (Including Screws) $27.26
4 S97020412 Capacitor (Including Tie Wrap)
This product has been discontinued
4 S97020797 Autotransformer Rev 00(With Screws) $69.56
4 S97021392 Transformer 24 V 18 Va (With Screws) $67.68
6 S97021291 Blower Wheel Set Rev00 (both ccw & cw ) (not for REV01) $206.80
7 SR99420635 Clip For Fanpeller $27.26
8 S97020466 Non-Ducted Filter 30" - Type Xd (Set Of 2) (Non-Ducted Installation Only) $46.06
8 S99527587 Non-Ducted Filter Clip Kit (Incl. 4 Clips)
This product has been discontinued
8 S99010435-002 30" filter for ducted hoods (13 7/8 x 15 23/32) $130.66
10 S97021327 Blower Assembly CCW Rev01 Right side (Motor/Blade/Capacitor) $213.38
6 S97021326 Blower Assembly CCW LEFT side Rev01(Motor/Blade/Capacitor) $211.50
6 S97020842 Blower Assembly CW Rev00 Left (Motor/Blade/Capacitor) $193.64
10 S97020843 Blower Assembly CCW Rev00Right Side (Motor, Blower Wheel & Capcitor) $179.54
12 S97020444 Led Modules (Pair) $84.60
14 S97020438 Switch Assembly Rev00 & Rev01 $174.84
* BP87Q 7" foam quiet damper/ hood $19.00
  S97020360 Partsbag $27.26
1 S97020031 Recirc. Cover Plate, Stainless Steel (Including Screws) $27.26
  S97020031 Recirculation Cover Plate White $27.26
  S97020029 Recirculation Cover Plate Black w/ mounting $27.26
  S97020470 Easy Install Kit (Including Hardware) $42.30
  S97020796 Wire Harness Rev00 $142.88
  S97020454 Wire Harness Rev01 $33.84
