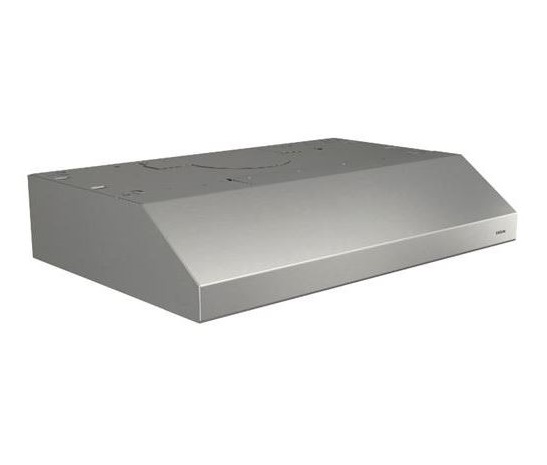

Broan BCSD124SS Range Hood Stainless, 300 Max Blower CFM

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan BCSD124SS Range Hood Stainless, 300 Max Blower CFM

Broan BCSD124SS Range Hood Stainless, 300 Max Blower CFM breakout large

Part Key	Part Number	Description	Unit Price
	BCSD124SS	Complete New Unit	$204.90
0	SV05921	LED (LED MR16, GU10, Base 50 W)	$32.40
	S99527587	Non-Ducted Filter Clip Kit (Includes 4 Clips) This product has been discontinued
1	S97020031	Recirculation Cover Plate, Stainless Steel (Incl. Screws)	$27.26
1	S97020471	Recirculation Cover Plate, Biscuit (Including Screws	$11.34
2	S97018567	7'' Round Duct Plate (Including Screws)	$27.26
3	S97020534	3¼” X 10” Damper Assembly (Including Screws)	$27.26
4	S97020408	Blower Motor (Including 4 Screws And 1 Capacitor)	$107.16
5	S97020407	Fanpeller (Including Item 6)	$51.70
6	SR99420635	Clip For Fanpeller	$27.26
7	S99010430-001	Grease Filter 24" - Open Mesh - Type B1 (Set Of 2) 15.725x10.875	$93.06
7	S97020465	Non-Ducted Filter - Type Xb (Set Of 2)	$51.70
8	S99030355	Rocker Switch, White (Set Of 2)	$33.84
8	S99030356	Rocker Switch, Black (Set Of 2)	$76.14
8	S99030357	Rocker Switch, Biscuit (Set Of 2)	$18.00
8	S99030367	Rocker Switch, Grey (Set Of 2)	$27.26
9	S97020448	Wire Harness	$33.84
*	BP87Q	7" foam quiet damper/ hood	$12.59
	S97020470	Easy Install Kit (Including Hardware)	$42.30
	S97020292	Parts Bag	$27.26
