Broan E55000 Chimney Kitchen Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

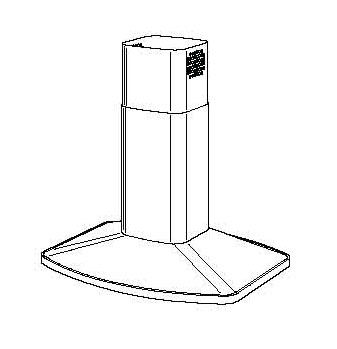

Broan E55000 Chimney Kitchen Range Hood Parts
Broan E55000 Chimney Kitchen Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99091031 Nameplate / Logo $27.26
  SB080810501 Parts Bag $46.06
0 HCK44 Cord Kit with 6' cord and plug $42.30
0 SB02300674 Fuse Holder
This product has been discontinued

0 SB02300782 Fuse 4-Amp. 5mm X 20mm $27.26
0 SB03300488 Non-Ducted Filter 8-7/8" X 9-1/2" (optional) ** $97.76
0 SB06002013 Blower Assembly (Includes Key No. 45, 48, 49, 53) only works with B,C,& D Revisions. $331.82
0 SB06108719 SWITCH ASSY F/E55000 SERIES $194.85
0 SB08999660 NON-DUCTED RECIRCULATION KIT F/E55000 SERIES $94.50
SGD SB08091764 GLASS SLIDE $52.32
7 SBE3346761 FILTER SUPPORT $19.12
9 SB08087092 GREASE FILTER $42.30
14 SB02300233 Motor Capacitor $27.26
16 SBE3346354 ELECTRICAL BOX SUPPORT $12.13
19 SB03295005 TRANSFORMER PROTECTION
This product has been discontinued

26 SB02300891 Halogen Bulb (G4 Base, 12 Volt, 20 Watt) $18.95
37 SB02300804 HEAT SENTRY $42.30
48 SB02310203 MOTOR
This product has been discontinued

49 SB03295076 Wheel $51.70
53 SB03204177 RUBBER WASHER
This product has been discontinued

60 SB02300249 FEEDER CABLE $27.26
62 SB08091462 BLOWER MOUNTING COVER $27.26
76 SB02005121 GLASS $224.92
86 SB08088378 DAMPER/DUCT CONNECTOR WITH FLAPS AND SPRINGS $27.26
92 SBE3348916 SWITCH MOUNTING BRACKET $7.60
113 SB02011314 NAMEPLATE (Replaced By V06750) $7.42
118 SBE3348941 DECORATIVE LOWER FLUE $138.10
119 SBE3346765 DECORATIVE TOP FLUE $140.98
120 SB08091367 Upper Flue Mounting Bracket $33.84
145 SB032920170 FEEDER CABLE CONTN BOX $8.50
146 SB032920180 CABLE CONNECTION BOX COVER $0.90
147 SBR2300132 4 WIRE TERMINAL BLOCK $27.26
151 SB032920200 ELEC BOX WIRES STOP
This product has been discontinued

165 SB03295008 ELECTRICAL BOX WITH COVER $33.84
166 SB08086668 HEAT SENTRY RELAY PM390HS $84.60
208 sb02300739 Transformer $135.36
223 SB03200351 SWITCH BUTTON $27.26
228 SB08086286 SWITCH F/K3139 - REV B $94.00
229 SB03201014 LAMP LENS $27.26
230 SB03292303 SWITCH BOARD BOX COVER
This product has been discontinued

234 SB03292302 SWITCH BOARD BOX
This product has been discontinued

240 SB03292301 BUTTON EXTENDER F/K23/K29 $27.26
252 SB03294836 LIMIT SWITCH BOX SEE SB03295076
This product has been discontinued

253 SB02300620 LIMIT SWITCH $33.84
254 SB03294837 LIMIT SWITCH BOX COVER $10.13
274 SB03295035 SRV JUNCTION BOX $33.84
332 SB03295009 COVER $27.26
367 SB02011210 GLASS HANDLE $16.76
407 SBE3344985 BLOWER SUPPORT BRACKET
This product has been discontinued

474 SB02300798 LIGHT HOUSING
This product has been discontinued

477 SB03295006 TERMINAL COVER $38.54
  ARP6 AIRFLOW REDUCER to 6" round
This product has been discontinued
