Broan ERV100HC Energy Recovery Ventilator Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

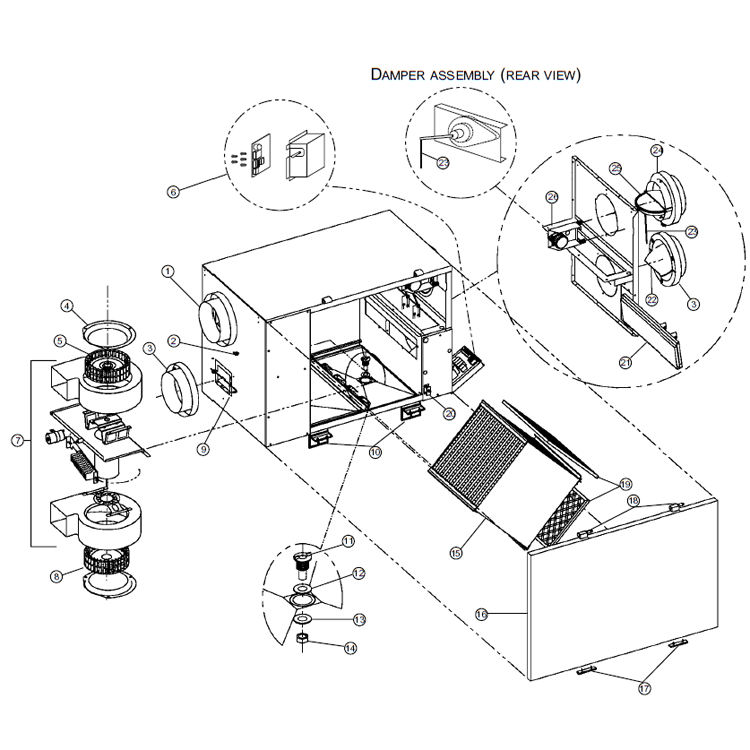

Broan ERV100HC Energy Recovery Ventilator Parts
Broan ERV100HC Energy Recovery Ventilator Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  SV03136 ERV Core $1,006.74
  SV13555 Blower Assembly $683.38
  SV12647 Electronic Circuit Board $390.10
  SV12873 Heat Sink $73.53
  SV12886 Wheel Kit $122.35
5 SV02015 Blower Wheel DBL CW WHEEL 6.290" X 2.000" $117.50
  SV03093 DBL CCW WHEEL 6.19" X 2.39" $118.44
  SV01825 Switch $30.08
  SV12895 Thermistor $126.90
  SV18304 Fuse/Cord $42.30
  SV12658 Switch $47.23
  SV03124 Damper Motor $188.94
  SV12620 Damper Rod $42.30
  SV00248 Damper Rod Rubber Grommet $42.30
  SV12648 Door Assembly $210.38
  SV00672 Hinge $27.26
  SV005960 Door Latch $3.38
  SV00887 Door Latch Keeper $27.26
  SV02021 Upper Right Front Port for Fresh Air $51.70
17 SV03096 FILTER/ERV/HRV100 (12 7/8 x11 3/4) $40.42
  SV02257 Upper Left Front Port for Fresh Air $33.84
  SV02256 Lower Balancing Port $57.34
  SV13404 Silicone Tube $42.30
  SV03148 Chain & Drain Kit $49.90
  SV03203 Connector $42.30
