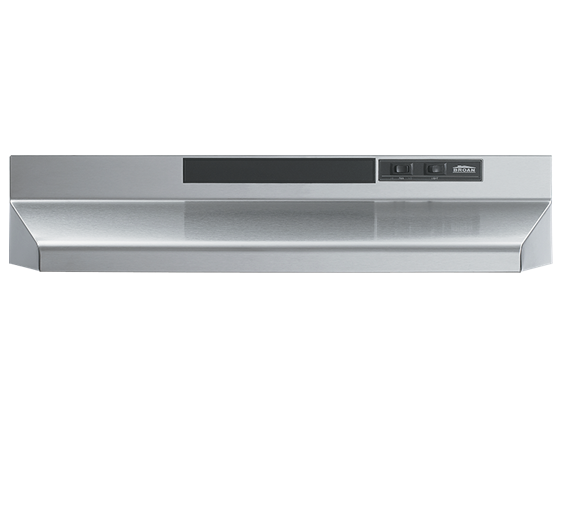

Broan F403004 30", Stainless Steel Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan F403004 30", Stainless Steel Range Hood Parts
Broan F403004 30", Stainless Steel Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 F403004 New Current production stainless rangehood $103.91
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.51
0HCK44 Cord Kit with 6' cord and plug $13.93
 S97010792 7" Round Damper (Optional, not included with hood) $22.59
1S98006621 Wiring Box Cover $3.98
3S97010966 Light Socket $9.52
4S99110437 Light Lens $4.93
6S99020272 Fan Blade $4.95
8S98005568 Motor Mounting Bracket $1.96
9S97012248 Motor, Blade & Bracket Assy. $41.04
10S97006931 Aluminum Filter 8¾” x 10½” $9.88
10S97007696 Non-Ducted Filter 8¾” x 10½” $17.62
11S99420472 Plastic Filter Clip/Retainer $4.05
17S99030315 Motor Switch Black (obsolete replaced by 97016970)
17S99030316 Motor Switch White (Obsolete, replace w 97016971)
17S99030317 Motor Switch Almond $4.86
17S 97016973 Motor Switch Biscuit $4.86
17S99030310 OBSOLETE Light Switch - Black, rpl by 97016970
17S99030311 OBSOLETE Light Switch - White replaced by 97016971
17S99030312 Light Switch Almond
17S99030313 Light Switch Biscuit (replaced by switch set 97016973)
17S97016971 WHITE- LIGHT SWITCH-2prong $4.86
10S97016970 BLACK- LIGHT SWITCH-2prong $4.86
15S97005544 Damper Assembly 3-1/4" X 10" $12.33
16S97010709 Nameplate Black $3.98
16S99091077 Nameplate Biscuit $3.98
16S99090881 Nameplate - White $3.98
19S97005678 Female Receptacle That Motor Plugs Into With Wire Leads $3.16
20S99091020 Plastic Louver Cover White $4.25
20S99091021 Plastic Louver Cover Almond
20S99091022 Plastic Louver Cover Black $4.25
20S99091027 Plastic Louver Cover Biscuit $4.25
21SR680508 7" Round Duct Plate $21.56
