Broan HD50 Heavy Duty Operation Ventilation Fan Parts

Listed below are the parts available for this model.

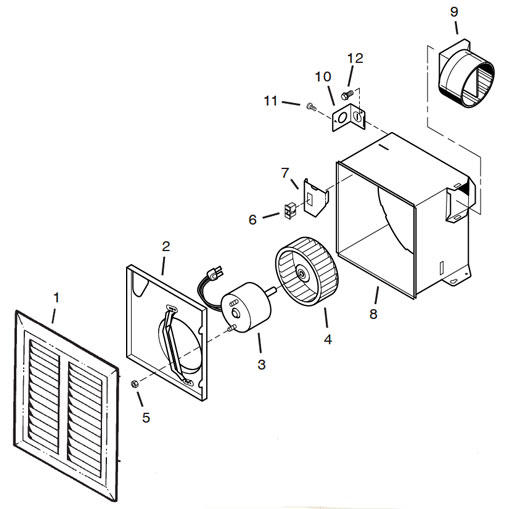

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan HD50 Heavy Duty Operation Ventilation Fan Parts
Broan HD50 Heavy Duty Operation Ventilation Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99100399 RUBBER SPACERS HD50-A, HD80-A $18.00
  S99150471 Ground Screw - HD50-B - #10-32 x 1/2" $18.00
0 FG500NS Upgrade Grille/Cover w/ LED Light (11 x 9 3/4) $40.18
0 FG600S Upgrade Grille/Cover w/ LED Light (FG600S) $40.18
0 FG800SPKS Upgrade Bluetooth Exhaust Fan Grille/Cover w/ LED Light 11" x 9-3/4" x 2" grille $86.62
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
  FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.60
1 S99140192 Grille Spring - 2 Required $18.00
2 S97011452 Motor Mounting Bracket & Plate - HD50 $10.22
2 S97014926 Motor Mounting Bracket & Plate - HD50-B $30.60
1 S97011308 Metal Grille Kit with Springs fits all units $68.62
3 S97011309 MOTOR HD50-A obsoleted us s97009745
This product has been discontinued
  S97009745 Motor Assembly for the A version (80 cfm assembly) $98.70
3 S97015161 MOTOR Assembly for A,B, (50 cfm motor,blade, bracket) $120.32
3 S99080519 MOTOR F/HD50-B $76.14
5 S99260425 Motor Mounting Nut - #8-32 - 2 Required $2.40
4 S97009755 BLOWER WHEEL HD50-A. HD80-A $27.48
4 S99020276 BLOWER WHEEL HD50-B, HD80-B
This product has been discontinued
6 S99270982 RECEPTACLE, BLACK $18.00
7 S97015170 OUTLET BOX COVER WITH RECEPTACLE HD50-B, HD80-B $67.68
9 S97003932 4 INCH DAMPER/DUCT CONNECTOR $27.26
10 S98008868 ELECTRICAL KNOKOUT PANEL HD50-B, HD80-B $18.00
  S99390015 Ground Clip - HD50
This product has been discontinued
