Broan HD50L Heavy Duty 50 Cfm Fan Light Parts

Listed below are the parts available for this model.

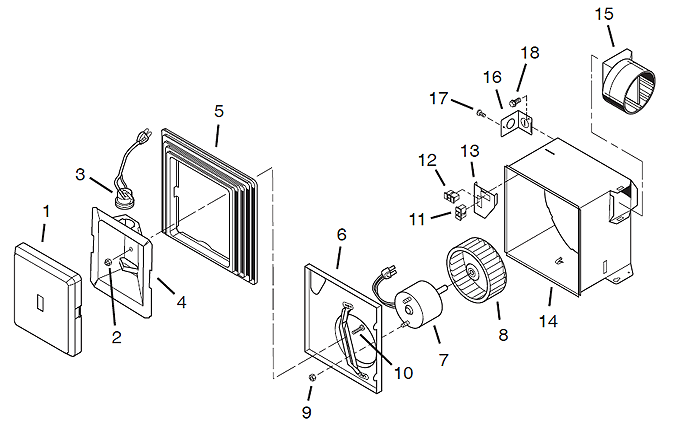

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan HD50L Heavy Duty 50 Cfm Fan Light Parts
Broan HD50L Heavy Duty 50 Cfm Fan Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97011813 LIGHT LENS HD50L-A,B,C,D HD80L-A (7 3/4 x 7 square corners)
This product has been discontinued
1 S97013578 LIGHT LENS HD50L-E,F,G / HD80L-B,C,D (7x8 rounded corners)
This product has been discontinued
2 S97005316 Grille Mounting Acorn Nut - #10-24 $27.26
3 S99770118 Lamp Socket W/ PLUG $27.26
4 S97014211 LIGHT REFLECTOR (no socket)
This product has been discontinued
4 S97014212 Reflector w/ socket $27.26
5 S97014094 GRILLE & LENS (keys 1 & 5) FITS ALL UNITS 10 5/8 X 11.25 $38.54
0 FG500NS Upgrade Grille/Cover w/ LED Light (11 x 9 3/4) $40.18
0 FG600S Upgrade Grille/Cover w/ LED Light (FG600S) $40.18
0 FG800SPKS Bluetooth Exhaust Fan Grille/Cover w/ LED Light 11" x 9-3/4" x 2" grille $86.62
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
  FG800SPKS Bluetooth Upgrade Grille/Cover w/ LED Light (11" x 9-3/4" x 2" grille ) $86.63
5 S97013974 GRILLE HD50L-E,F,G (10 5/8 X 11.25) $27.26
5 S99110751 GRILLE HD50L-A,B,C,D (9.5 X10.25) $48.60
6 S97011314 Motor Plate HD50L-B,C HD80L-B,C, F/SERV $28.46
6 S97014926 MOTOR MOUNTING BRACKET HD50L-D / HD80L-D $30.60
7 S97011312 HD50L-B,C MOTOR $60.02
7 S99080519 MOTOR HD50L-D $76.14
7 S97015161 BLOWER ASSEMBLY HD50L-D (keys 2-5) $120.32
8 S97011315 Blower Wheel HD50L-A,B,C, HD80L-A,B,C $33.84
8 S99020276 BLOWER WHEEL HD50L-D HD80L-D
This product has been discontinued
9 S99100399 Rubber Motor Spacer - ED50L, HD50L, HD50L-B,C -2 Required $18.00
9 S99260425 Motor Mounting Nut - #8-32 - 2 Required $2.40
10 S99170245 Screw used to Attach Mounting Plate to Housing - ED50L, HD50L, HD50L-B,C - #8-18 x 3/8" $18.00
10 S99150582 Grille Mounting Stud / Screw - #10-24 x 3/4" $33.84
11 S99270982 Receptacle - Black $18.00
12 S99270981 Light Receptacle, White $27.26
13 S97015171 WIRE PANEL ASSY W RECPTACLES HD50L-D / HD80L-D $27.26
13 S98009612 Wire Panel Cover Only - HD50L-D $18.00
14 S97014922 Housing - HD50L-D $34.78
15 S97014185 Damper Duct Connector - 4" Round $27.26
15 S97014185 4" Damper/Duct Connector $27.26
17 S99170245 Electrical Knockout Plate Mounting Screw - HD50L-D - #8-18 x 3/8" $18.00
18 S98008868 Electrical Knockout Plate - HD50L-D $18.00
