Broan L250 250Cfm Exhaust Fan Parts

Listed below are the parts available for this model.

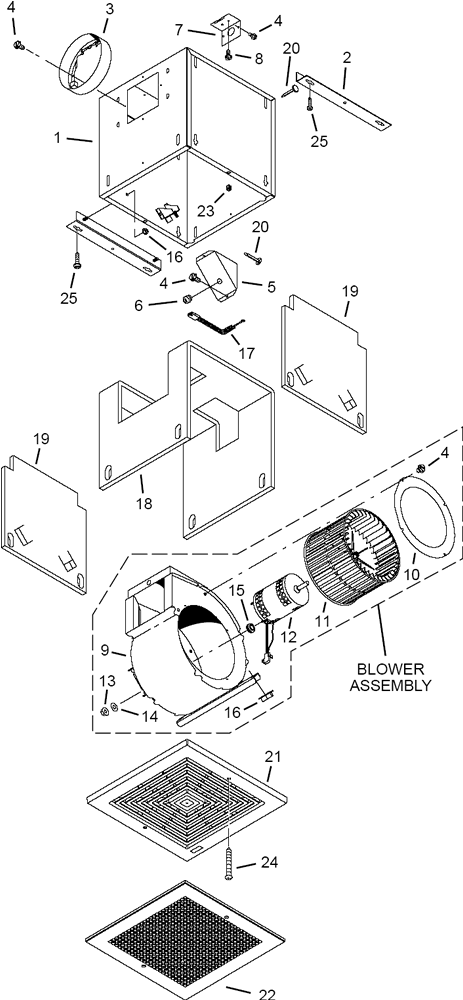

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan L250 250Cfm Exhaust Fan Parts
Broan L250 250Cfm Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* L250E Complete New Unit $242.37
2 S97014728 Mounting Bracket - 2 Required - All Units $18.00
3 S97014761 Damper Assembly 8" Round $33.84
6 S98005513 Wiring Box Cover $1.73
9 S97014774 Scroll Housing $45.09
11 S99110805 Plastic Blower Wheel
This product has been discontinued

12 S99080484 Motor 120 Volt $162.90
12 S97014803 Complete Motor Assy.120 Volt - (Includes Key Nos. 9 thru15) $309.60
13 S99260558 Motor Mounting Nut $18.00
14 S99250959 Motor Mounting Washer $18.00
15 S99100491 Motor Mounting Grommet $27.26
17 S97006039 Wire Harness $33.84
  LAF1 12" x 12" Grease Filter $39.60
21 S99110807 Plastic Grille (14x14) $42.30
22 S98009416 Metal Grille $76.14
23 S99420470 White Plastic Grille Nut - 2 Required $27.26
24 S99150472 Grille Mounting Screws - 2 Required
This product has been discontinued
