Broan L400 Ceiling Mount Exhaust Fan 400Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

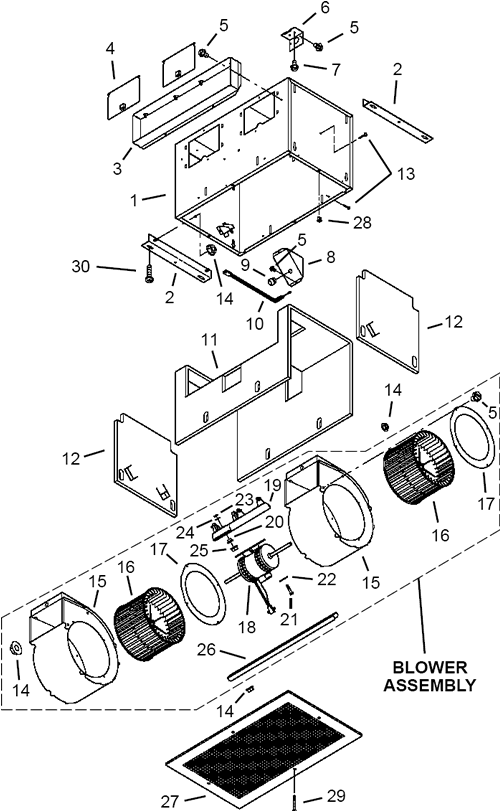

Broan L400 Ceiling Mount Exhaust Fan 400Cfm Parts
Broan L400 Ceiling Mount Exhaust Fan 400Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* L400 Complete New Unit $288.49
2 S97014728 Mounting Bracket - 2 Required - All Units $18.00
3 S98009449 Duct Collar Without Damper Flaps $27.26
3 S97014822 Damper Flap - 2 Required - All Units $27.26
5 S98005513 Wiring Box Cover $1.73
10 S97006039 Wire Harness $33.84
15 S97014745 Scroll Housing $34.13
16 S99110805 Plastic Blower Wheel
This product has been discontinued

18 S99080486 Motor With Capacitor 120 Volt $235.94
18 S97014817 Complete Motor Assy. 120 Volt (Include Key Nos. 5 & 14 thru 26) $425.82
19 S97014794 Motor Mounting Bracket $21.44
20 S99100497 Rubber Insolators - 4 Required $27.26
27 S98009463 Metal Grille $72.38
28 S99420470 White Plastic Grille Nut - 4 Required $27.26
29 S99150472 Grille Mounting Screw - 4 Required
This product has been discontinued
