Broan MS120L Motion Sensing Bathroom Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

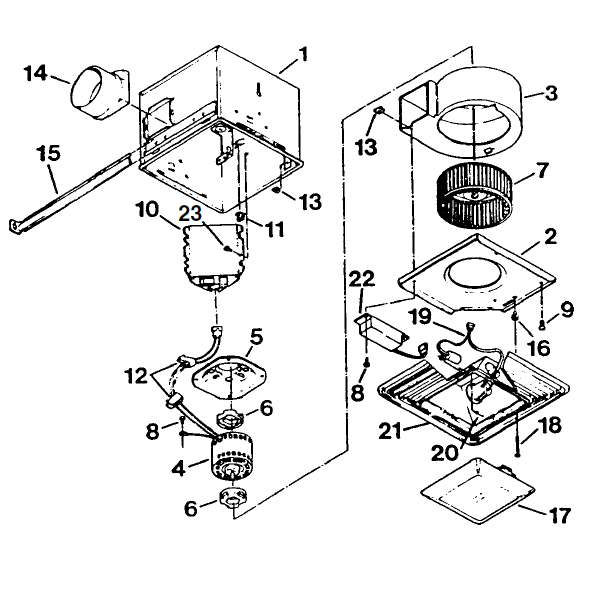

Broan MS120L Motion Sensing Bathroom Fan Parts
Broan MS120L Motion Sensing Bathroom Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
3 S97011270 Blower housing
This product has been discontinued
4 S97009800 Motor/Blower Assembly (Includes Key Nos. 2,3,4,5,6,7,8,12, &13)
This product has been discontinued
4 S99080274 Motor Modified (JA2M373N) CW $135.61
5 S95000963 Motor Cup
This product has been discontinued
6 S99100412 Motor Mounting Rubber - 2 Required
This product has been discontinued
7 S99110735 Blower Wheel cw 5 3/4"h x 2.5w" x 5/16diam
This product has been discontinued
10 S97011131 WIRE CVR/HRN ASSY-F/L-SVC $53.03
18 S99150542 Screw, #6-20 x 2-7/8" $18.00
19 S97011062 LIGHT HARNESS ASSY ( replaced by 97012134) $0.00
12 S97012025 Fan Motor Adapter Plug $27.26
12 S99420643 Wire Clip (2 req.) $4.36
14 S97014185 4" Damper/Duct Connector $27.26
15 S98003036 Mounting Bracket (4 req.) $27.26
16 S99420631 White Plastic Grille Nut (2 req.) $27.26
17 S99110736 Light Lens 6 3/4 x 6 3/4 x 1
This product has been discontinued
19 S97012134 Light Socket Assembly $54.00
22 S97011127 MOTION SENSING CONTROL BOARD ASSY-MOTION-
This product has been discontinued
