Broan PM25 Range Hood Parts

Listed below are the parts available for this model.

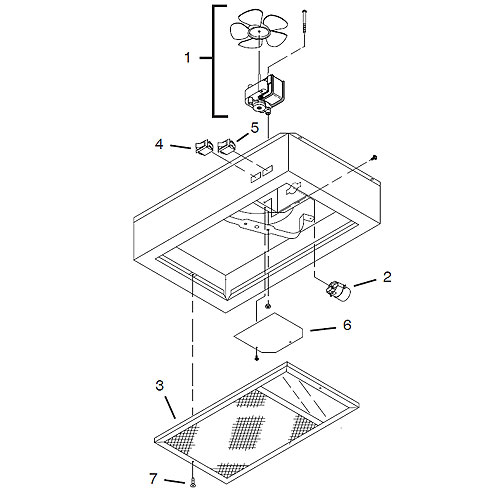

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan PM25 Range Hood Parts
Broan PM25 Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 HCK44 Cord Kit with 6' cord and plug $42.30
1 SR730090 Motor Assembly with Fan Blade $86.48
2 SR111447 Light Socket
This product has been discontinued

3 SR610027 Aluminum Filter with Light Lens -OBSOLETE USE SR610049 (7-5/8" x 14-1/8")
This product has been discontinued

4 SR610049 Charcoal Combination Filter with Light Lens 7-5/8" x 14-1/8" $27.26
5 S97016971 Motor and Light Switch Kit - White $27.26
6 S97016970 Motor and Light Switch Kit - Black $42.30
7 SR602539 Filter Screw - Holds Filter in Place, 2 Required $0.68
8 SR600018 Tinnerman Clips f/ Filter Screws (Filter Screws Thread into this Item) 2 Required $0.62
9 S97010792 Damper Assmebly 7" Round (Optional, Not Included with Hood) $42.30
10 S97005543 Parts Bag 4-Mounting Screws + 2 Damper Screws $27.26
