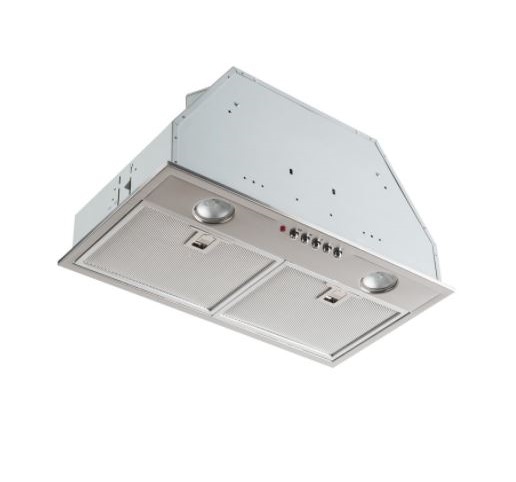

Broan PME52 Range Hood Power Module Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan PME52 Range Hood Power Module Parts

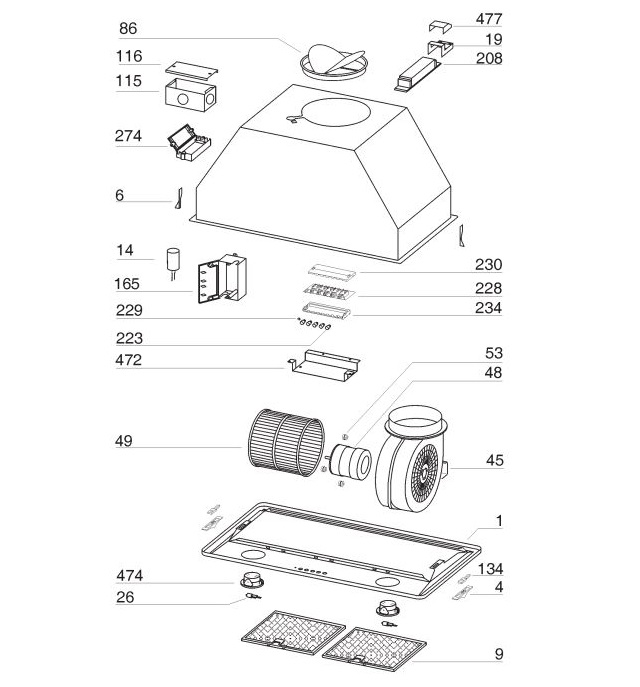

Broan PME52 Range Hood Power Module Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  SB03294780 Switch Box Only $57.34
  SB08080360 Switch Circuit Board $76.14
  SB03294781 Electrical Box for Control Board $27.26
  SB03294033 Cover for Control Board Box $31.96
  SB06103830 SWITCH ASSEMBLY - INCLUDES SWITCH BOX, SWITCH CIRCUIT BOARD, SWITCH BUTTONS, & WIRE HARNESS -VERSION B $97.76
0 HCK44 Cord Kit with 6' cord and plug $42.30
2 SV05921 LED (LED MR16, GU10, Base 50 W) $32.40
3 SB06108882 Light Socket - 2 Required $33.84
4 SB02009102 Ring Nut (bezel) That Surrounds Bottom of Light Bulb - 2 Required $33.84
5 SBE3344847 Bottom - Grid - Part the Filter Attached to on Bottom of Hood $33.84
6 SB02000690 Knob That Holds Bottom Metal Grille in Place - 2 Required
This product has been discontinued

7 SB08086141 Circuit Control Board - Separate Board Located Inside Upper Left of Unit $87.42
8 SB03201014 Red Pilot Light Lens $27.26
8 SB08087804 Grease Filter - 2 Required $33.84
9 SB03295081 Knob for Light Switch $33.84
10 SB03295082 Knob for Motor Switch $33.84
10 SB0899040 Non-Ducted Filter $36.76
11 SBR2300132 Terminal Block $27.26
12 SB02011013 Clasping Side Spring for Mounting Hood to Cabinet $33.84
13 SB080810782 Parts Bag $1.98
  SBE3349127 Lamp Socket Mounting Bracket $30.08
  SB03294779 WIRE CLAMP $27.26
  SB08092406 DAMPER DUCT CONNECTOR - 10" ROUND $170.14
