Broan QTR100L Ventilation Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QTR100L Ventilation Fan/Light Parts

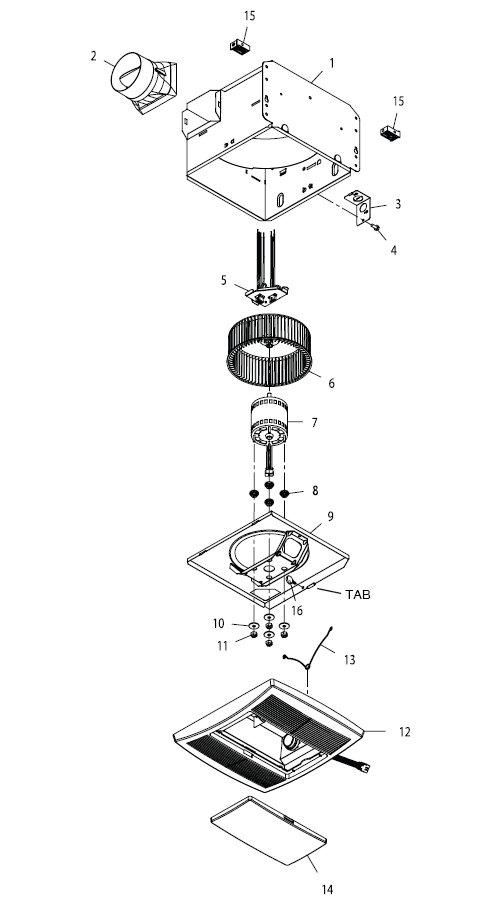

Broan QTR100L Ventilation Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97016543 Grill Assembly for the Nutone Version
This product has been discontinued
2 S97018273 Complete Grille Assembly 12 3/8 x 14 (Grille/lens/springs/reflector/socket)see s97016543
This product has been discontinued
3 S99140199 Grille Spring - 2 Required $18.00
3 S98010102 Electrical Knockout Plate f/ Top of Hsg. $33.84
2 S97016449 Damper/Duct Connector - 4" $27.26
5 S97018011 Wire Panel Cover and Wire Harness Assembly $33.84
6 S99020284 Blower Wheel - QTR100L-A $33.84
7 S97016622 Complete Blwr. Assy. - QTR100L-A see 97020048
This product has been discontinued
7 S97020048 Blower Assembly - Includes Motor, Blower Wheel, & Motor Mounting Plate $215.10
8 S99100491 Rubber Motor Isolator - 4 Required - QTR100L-A $27.26
9 S97016468 Bracket/Plate - QTR100L-A $35.10
9 S97018014 I-Joist Spacer Block (Contains 2) $27.26
10 S99250959 Washers #8 x .625 - 4 Required - QTR100L-A $18.00
11 S99260558 Nut #8-32 for Attaching Motor - 4 Required - QTR100L-A $18.00
17 S99420665 Thumbscrew for Holding Complete Blower Assembly In Place In Place - 1 Required $33.84
  S99271426 Night Light $18.00
