Broan QTRE090FL Bathroom Fan/Fluorescent Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QTRE090FL Bathroom Fan/Fluorescent Light Parts

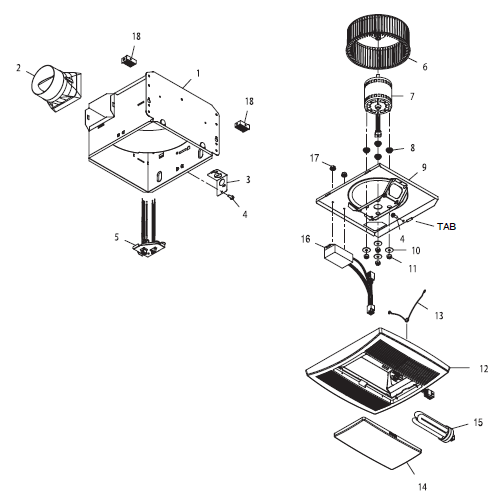

Broan QTRE090FL Bathroom Fan/Fluorescent Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97018273 Grille Assembly & Conversion Kit
This product has been discontinued
  S99111401 Light Lens - New Converted Grille Design using [2] 18W GU24 Bulbs (10 9/32 x 5.5)
This product has been discontinued
  S99271381 Bulb - New Converted Grille Design - Fluorescent, 18 Watt, GU24 Base - 2 Required $28.80
  S97016618 Ballast Assembly - QTRE090FL-A
This product has been discontinued
1 S97016466 HOUSING F/N-CAN $59.22
1 S99271358 Bulb, 42 Watt Fluorescent 4 Pin, QTRE090FL-B,C $59.22
2 S99271311 Bulb, 26 Watt Fluorescnet 2 Pin, QTRE090FL-A $26.55
3 S99111281 Lens see s99111401
This product has been discontinued
4 S99140199 Grille Spring (2 Required) $18.00
3 S98010102 Electrical Knockout Plate For Top of Housing $33.84
5 S97016585 WIRE PANEL HARNESS ASSEMBLY F/QTRE090FL-A $30.08
5 S97016933 WIRE PANEL/HARNESS (replaced by 97018011) $6.98
6 S9016618 Ballast Assembly 6 PIN QTRE090FL-B,C
This product has been discontinued
6 S97016568 Ballast Assembly 5 PIN QTRE090FL-A see 97016618
This product has been discontinued
8 S99260488 Nut for Attaching Ballast - QTRE090FL-A, Hex #10-24 (2 Required) $18.00
9 S97017863 Blower Wheel - QTRE090FL-C $27.26
9 S97016901 PLATE FOR MOTOR QTRE090FL-B $11.77
10 S99020284 Blower Wheel - QTRE090FL-A,B $33.84
11 S97020050 Complete Motor Assembly - QTRE090FL-B,C $153.90
12 S97017851 Complete MotorAssembly - QTRE090FL A see 97020050
This product has been discontinued
12 S97016868 GRILE ASSY F'QTRE090FL-A (INCLUDES KEY #'S 13 & 14) see 97018273
This product has been discontinued
12 S97016884 GRILLE ASSEMBLY F/QTRE090FL-B (REPLACED BY 97016868)
This product has been discontinued
15 S97016888 BULB, 42 WATT F/QTRE090FL-B (replaced by 99271358) $29.78
15 S99271311 BULB 26 WATT F/QTRE090FL-A $26.55
15 S97016901 Bracket motor/Partition Plate - QTRE090FL-B $11.77
16 S97016468 Bracket Motor/Partition Plate - QTRE090FL-A $35.10
17 S99250959 Washer Motor #8 (4 Required) $18.00
18 S99260558 Nut motor, Hex Lock #8-32 (4 Required) $18.00
18 S99111293 SPACER F/N-CAN $0.00
19 S99100491 Rubber Motor Isolator (4 Required) $27.26
20 S97018011 Wire Panel/Harness QTRE090FL-B $33.84
21 S97016585 Wire Panel/Harness, QTRE090FL-A $30.08
22 S97018014 I-Joist Spacer Block (Contains 2) $27.26
23 S97016449 Duct Connector - 4" $27.26
  S99271426 Night Light 4 watt $18.00
