Broan QTXE110SFLT Humidity Sensing Bathroom Fan Parts

Listed below are the parts available for this model.

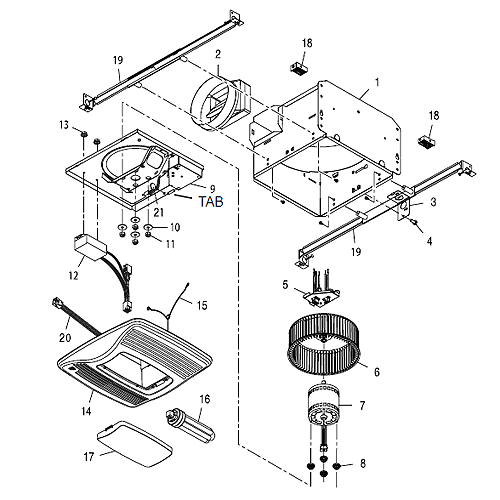

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QTXE110SFLT Humidity Sensing Bathroom Fan Parts
Broan QTXE110SFLT Humidity Sensing Bathroom Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97016466 Housing $59.22
2 S97016450 Damper/Duct Connector - 6" $27.26
3 S98010102 Electrical Knockout Plate For Top of Housing $33.84
5 S97017086 WIRE PANEL/HARNESS ASSEMBLY $42.30
6 S99020284 Blower Wheel(A-version) $33.84
6 S97017863 Blower Wheel - QTXE110SFLT-B,C $27.26
7 S97020051 Blower Assembly - Motor, Blower Wheel, & Mounting Plate(C,D,E F-version) $160.20
7 S97020044 Motor Assembly (A, B version) $110.92
7 S97020052 Humidity Control Sensor (a,bc,d version) $137.24
8 S99100491 Rubber Motor Isolator, 4-Required $27.26
7 S97017087 MOTOR PLATE & W/ CONTROL ASSEMBLY $171.72
9 S97017083 Motor Mounting Plate & Humidity Control Module - QTXE110SFLT-C $172.96
8 S99250959 Motor Mounting Washer - QTXE110SFLT-A - #8 - 4 Required $18.00
8 S99260558 Motor Mounting Nut - QTXE110SFLT-A, #8-32 - 4 Required $18.00
11 S99170245 Screw Used to Attach Motor Plate to housing - QTXE110SFLT-A - #8-18 x 3/8" $18.00
11 S99260423 Nut used to Attach Ballast to Motor Plate - QTXE110SFLT-A,B - #8-32 - 2 Required $18.00
12 S97016618 Ballast Assembly
This product has been discontinued
14 S97016966 GRILLE ASSY W SENSOR & SOCKETS (INCLUDES KEY #'S 15, 17 & 20) $252.86
15 S99140199 Grille Spring 2- Required $18.00
16 S99271358 42 WATT FLOURESCENT BULB, 3500K $59.22
16 S99271381 Bulb - QTXE110SFLT-C - Fluorescnet, GU24, 18 Watt - 2 Required $28.80
16 S97018014 Spacer Block fo I-Joist Installation - 2 Required $27.26
17 S99111345 LENS $27.26
18 S99111293 SPACER F/N-CAN $1.20
19 SQTHB1 HANGER BAR KIT $23.24
20 S99271344 SENSOR WIRE HARNESS $27.26
  S99271426 Night Light 4watt $18.00
