Broan QTXE150FL Fan/Fluorescent Light/Night Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan QTXE150FL Fan/Fluorescent Light/Night Light Parts

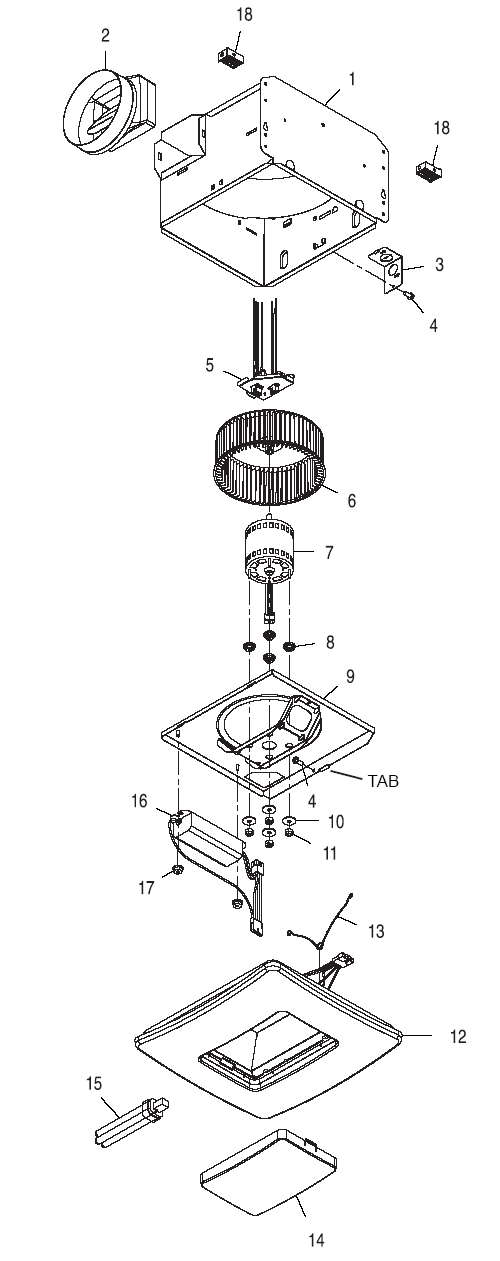

Broan QTXE150FL Fan/Fluorescent Light/Night Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
2 S97016450 Damper/Duct Connector - 6" $27.26
3 S98010102 Electrical Knockout Plate For Top of Housing $33.84
5 S97016585 Wire Panel Cover & Wire Harness Assembly, $30.08
6 S99020284 Blower Wheel-A $33.84
7 S99080565 Motor Only Version A
This product has been discontinued
6 S97020012 Motor Assembly for E,F (Motor,Blade, Bracket) $202.10
7 S97016591 Complete Blower Assembly, ** (Includes Key Nos. 6 thru 11) Version A, B, C, D
This product has been discontinued
8 S99100491 Rubber Motor Isolator, 4-Required $27.26
9 S97016468 Motor Bracket/Plate $35.10
10 S99250959 Washers #8 X .625 4-Required $18.00
11 S99260558 Nut #8-32 For Attaching Motor, 4-Required $18.00
12 S99500397 INSULATION F/150CFM QT
This product has been discontinued
15 S97016618 Ballast With Plugs for Fluoresent Bulb
This product has been discontinued
12 S97018271 Grille Assembly - (Lens, Sockets, 2 Grille Springs) New Square
This product has been discontinued
12 S97016544 Complete Grille Assembly * obsolete see 97018271 $0.00
18 S99140199 Grille Spring 2- Required $18.00
14 S99111399 Lens Version B square $27.26
15 S99271381 Bulb - New Converted Grille Design - Fluorescent, 18 Watt, GU24 Base - 2 Required $28.80
19 S99271311 Bulb 26 Watt Fluorescent - S80FLUE-A $26.55
20 S99111284 Lens - Light Bulb Cover (Version A rectangle $42.30
16 S97016618 Ballast with Plugs for Fluorescent Bulb
This product has been discontinued
18 S97018014 "I" Joist Spacer Block - 2 Required $27.26
  QTHB1 Hanger Bar Kit - Kit Includes 2 Hanger Bars $18.36
  S99271426 Night Light 4 watt $18.00
