Broan RM503004 30 In. Stainless Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

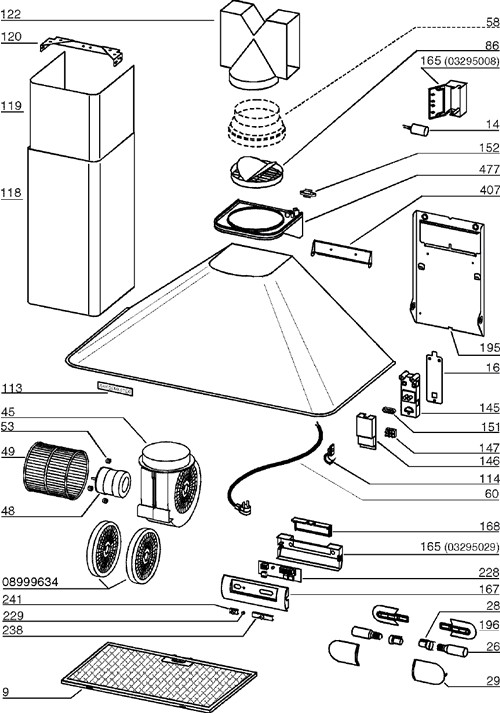

Broan RM503004 30 In. Stainless Range Hood Parts
Broan RM503004 30 In. Stainless Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* RM503004 Complete New Unit
This product has been discontinued
0 HCK44 Cord Kit with 6' cord and plug $42.30
  SB03300495 Non-Ducted Filters Contains 2 - Round Filters
This product has been discontinued
  SB06001983 Complete Blower Assy-Includes Motor & Wheel (Includes Key Nos.45,48,49 &53) $346.86
9 SB08087292 Grease Filter - 1 Required - 11 11/16 x 18 13/16 $33.84
14 SB02300233 Motor Capacitor $27.26
26 SB02300264 Light Bulb 40-Watt - 2 Required $27.26
26 SB02300264LED LED Light Bulb - 2 Required (5 Watt , 120 Volt E12, Candelabra Bulb) $14.77
28 SB02300280 LAMPHOLDER $27.26
29 SB03200618 Light Lens /Diffuser (2 required sold each) $27.26
37 SB02300787 Heat Senty RM52000-B $59.22
48 SB02310177 Motor $146.64
49 SB03295076 Wheel $51.70
53 SB03204177 RUBBER WASHER
This product has been discontinued
58 SB03295018 Non-Ducted Reducer from 6" to 5" $27.26
86 SB08088378 DAMPER/DUCT CONNECTOR WITH FLAPS AND SPRINGS $27.26
113 S99091031 Rangemaster Logo $27.26
118 SB03114479 Decorative Black Flue Bottom $59.36
118 SB03117797 Decorative White Flue Bottom $56.40
118 SBE3343338 Decorative SS Flue Bottom $135.36
119 SB03114480 Decorative Black Flue Top
This product has been discontinued
119 SB03117798 Decorative White Flue Top $57.34
119 SBE3343339 Decorative SS Flue Top $137.24
120 SB08091335 Top Flue Mounting Bracket(replaced by B08091367) $13.84
122 SB03295016 Non-Ducted Plenum/Air Diverter $27.26
166 B08086668F Circuit Control Board RM50000-B $69.24
167 SB03295030 ELECTRICAL BOX COVER F/RM50000
This product has been discontinued
196 SB02011113 Back Light Reflector $27.26
228 SB08086255 Switch Circuit Board RM50000-A $42.30
228 SB08086280 Switch Circuit Board RM50000-B $42.30
  SB06102706 SWITCH ASSEMBLY - GREY - INCLUDES SWITCH BOX, SWITCH PCB, & WIRE HARNESS-version b,c,d $109.98
229 SB03201014 Pilot LAMP red button $27.26
238 SB03295032 Button For Motor Switch $27.26
241 SB03295033 Button For Light Switch $29.14
  SB03295034 BLOWER CLOSING PLATE $27.26
  SB03295048 FAN SWITCH BUTTON - BLACK C-D
This product has been discontinued
  SB03295031 FEEDER CABLE COVER Version A $4.14
  SB03295029 SWITCH ASSEMBLY BOX ONLY VERSION A $27.26
  SB03295049 LIGHT SWITCH BUTTON - BLACK Version b,c,d $2.32
