Broan RM524204 42 In. Stainless Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan RM524204 42 In. Stainless Range Hood Parts

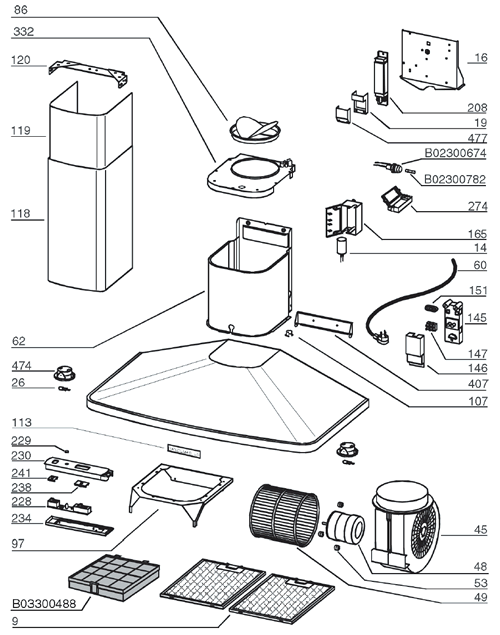

Broan RM524204 42 In. Stainless Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* RM524204 Complete New Unit
This product has been discontinued
0 HCK44 Cord Kit with 6' cord and plug $42.30
  SB02300674 Fuse Holder
This product has been discontinued
  SB02300782 Fuse 4-Amp. 5mm X 20mm $27.26
  SB03295016 Non-Ducted Plenum/Air Diverter $27.26
  SB03295018 Non-Ducted Reducer from 6" to 5" $27.26
  SB03300488 Non-Ducted Filter 8-7/8" X 9-1/2" (optional) ** $97.76
  SB06001991 Complete Blower Assy-RM52000-A (Includes Key Nos. 45,48,49,53) $224.66
  SB06002013 Blower Assembly (Includes Key No. 45, 48, 49, 53) only works with B,C,& D Revisions. $331.82
9 SB08087294 Grease Filter 2-Required for 30", 3-Required for 36" & 42" (9 3/8 x 11 3/4) $27.26
14 SB02300233 Motor Capacitor $27.26
26 SB02300891 Halogen Bulb (G4 Base, 12 Volt, 20 Watt) $18.95
37 SB02300787 HEAT SENTRY $59.22
48 SB02310187 Motor RM52000-A $145.70
48 SB02310203 Motor RM52000-B
This product has been discontinued
49 SB03295076 Wheel $51.70
53 SB03204177 RUBBER WASHER
This product has been discontinued
86 SB08088378 DAMPER/DUCT CONNECTOR WITH FLAPS AND SPRINGS $27.26
113 S99091031 Rangemaster Logo (replaced by V03493) $27.26
118 SBE3344597 Decorative Flue Bottom - RM52000 $126.90
119 SBE3343464 Decorative Upper Flue - RM52000 $109.04
120 SB08091367 Upper Flue Mounting Bracket $33.84
166 SB08086668 Circuit Board RM52000-B Only $84.60
  SB06102478 SWITCH ASSEMBLY - INCLUDES BUTTONS, SWITCH CIRCUIT BOARD, & WIRE HARNESS (B,C) $107.16
208 sb02300739 Transformer $135.36
228 SB08086252 Switch Circuit Board RM52000-A $33.84
228 SB08086279 Switch Circuit Board RM52000-B $27.26
238 SB03295074 Slide Button For Motor Switch $27.26
241 SB03295073 Slide Button For Light Switch $27.26
474 SB02300791 Lens & Chrome Ring w/Socket & Lamp Hsg $33.84
