Broan RM659004 Stainless Chimney Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan RM659004 Stainless Chimney Range Hood Parts

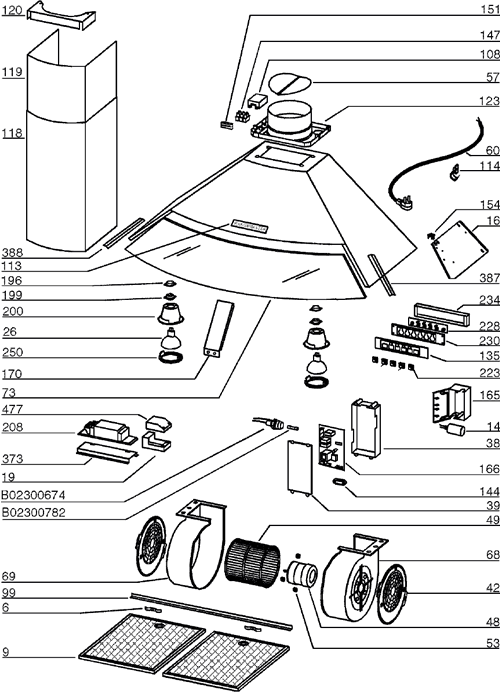

Broan RM659004 Stainless Chimney Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* RM659004 Complete New Unit
This product has been discontinued
0 HCK44 Cord Kit with 6' cord and plug $42.30
  SB02300782 Fuse 4-Amp. 5mm X 20mm $27.26
  SB06001989 Complete Blower Assembly -RM65000-A (Includes Key Nos. 45,48,49,53)
This product has been discontinued
  SB06002019 Complete Blower Assembly -RM65000-B (Includes Key Nos. 45,48,49,53)
This product has been discontinued
  SB06107341 Complete Switch Assembly (with 24" wire) w/Buttons $87.42
  SBW0000027 Switch Circuit Board RM65000-B Only
This product has been discontinued
6 SB02000191 Filter Spring $27.26
7 SB08087298 Aluminum Grease Filter sold each need 2 $67.68
14 SB02300233 Motor Capacitor $27.26
26 SB02300774 Halogen Bulb 2-Required (MR16, 12V, 20Watt) $22.93
48 SB02310184 Motor RM65000-B
This product has been discontinued
48 SB02310185 Motor RM65000-A
This product has been discontinued
49 SB03295071 Blower Wheel (rev b,c) $59.22
53 SB03204177 RUBBER WASHER
This product has been discontinued
57 SB02000756 Damper Flap 2-Required $18.02
73 SB002010000 Glass Visor
This product has been discontinued
113 S99091031 Rangemaster Logo (replaced by V03493) $27.26
118 SBE3342055 Decorative Flue Bottom $82.58
119 SBE3342056 Decorative Flue Top $109.12
120 SBE3342057 Top Flue Mounting Bracket $27.26
123 SB03292283 Duct Connector Only $34.56
166 SB08086661 Control Board RM65000-A $84.69
166 SB08086662 Electrical Printed Circuit Board (B version only) $180.48
199 SB02300688 Lamp Socket
This product has been discontinued
200 SB02009103 Bulb Shroud/Hsg Metal $67.68
208 SB02300739 Transformer $135.36
223 SB03202296 Switch Button 5-Required $27.26
228 SB08086253 Switch Circuit Board RM65000-A Only
This product has been discontinued
250 SB02009102 Bezel/Ring Nut-Chrome Ring $33.84
387 SBE3342079 Glass Right Stop $7.36
388 SBE3342043 Glass Left Stop $7.36
99 SBE3342052 FILTER CHANNEL $8.57
  SB08091173 ELECTRICAL BOX SUPPORT -A,B VERSION $10.85
