Broan RMP1 Rangemaster Power Pack 400 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan RMP1 Rangemaster Power Pack 400 Cfm Parts

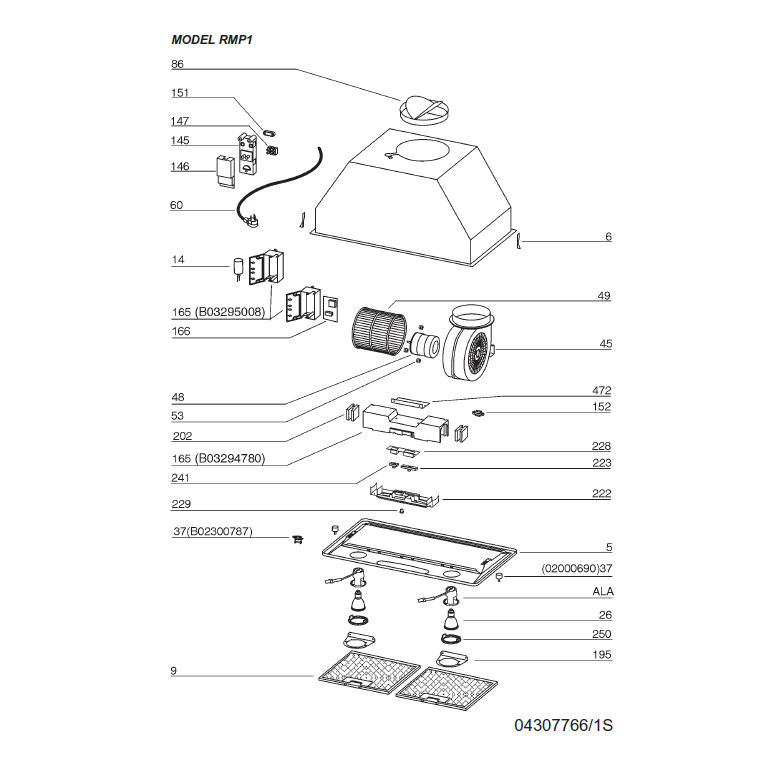

Broan RMP1 Rangemaster Power Pack 400 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  RMP17004 New Production Complete Internal Blower 400CFM 27 9/16 x 11 1/4
This product has been discontinued
  RMPE7004 New Production Complete 27 9/16 x 11 1/4 (needs external blower 331h,332h,335,336,hlb3,6,9,11)
This product has been discontinued
  RML7030S 30" Liner for 18-21" $234.46
  RML7036S 36" Liner for 18-21" $276.68
  RML7048S 48" Liner for 18-21" $299.16
  RML7030L 30" Liner for 21-24" $250.60
  RML7036L 36" Liner for 21-24" $283.13
  RML7048L 48" Liner for 21-24"
This product has been discontinued
0 SB06142412 SWITCH ASSY F/RMP1 REV A $296.89
0 SB06143142 SWITCH ASSEMBLY F/RMP1 REV B
This product has been discontinued
0 SB06001994 BLOWER ASSY F/REV A (#' S 45, 48, 49 & 53) $156.80
0 SB06002080 BLOWER ASSEMBLY F/RMP1 REV B (#'S 45, 48, 49 & 53) $544.26
5 SB183100509 RMP GRILLE replaced sb003183627
This product has been discontinued
6 SB02011013 FILTER SPRING $33.84
9 SB08087153 GREASE FILTER (12 5/8 x 6 5/8) $33.84
0 SB03300495 Non-Ducted Filters Contains 2 - Round Filters
This product has been discontinued
14 SB02300233 Motor Capacitor $27.26
14 SB06108818 CAPACITOR WIRES F/RMP17004 $66.28
19 SB03295005 TRANSFORMER PROTECTION
This product has been discontinued
26 SB02300891 Halogen Bulb (G4 Base, 12 Volt, 20 Watt) $18.95
37 SB02300787 HEAT SENTRY $59.22
45 SBW0000065 BLOWER WHEEL HOUSING $71.78
48 SB02310183 MOTOR F/RMP1 REV A
This product has been discontinued
48 SB02310260 MOTOR 1 LEFT F/REV B & C see sb0600280
This product has been discontinued
49 SB03295071 Wheel $59.22
53 SB03204177 RUBBER WASHER
This product has been discontinued
60 SB02300249 FEEDER CABLE $27.26
86 SB08088378 DAMPER/DUCT CONNECTOR WITH FLAPS AND SPRINGS $27.26
134 SB03293066 Slide Black Plastic Fastener for Attaching Bottom Grid (Replaced SB080814099) $18.00
145 B032920170 FEEDER CABLE CONTN BOX $8.50
146 B032920180 CABLE CONNECTION BOX COVER $0.90
147 SBR2300132 4 WIRE TERMINAL BLOCK $27.26
151 SB032920200 ELEC BOX WIRES STOP
This product has been discontinued
152 B03292200 FEEDER CABLE $1.62
165 SB03294780 CONTROLS BOX $57.34
165 SB03295008 ELECTRICAL BOX WITH COVER $33.84
166 SB08086668 HEAT SENTRY RELAY PM390HS $84.60
208 sb02300739 Transformer $135.36
195 SBE3349127 Lamp Socket Mounting Bracket $30.08
  SBE3344844 LAMP SOCKET MOUNTING BRACKET $83.70
222 SB03295080 CONTROL COVER, WHITE
This product has been discontinued
223 SB03295082 MOTOR BUTTON, WHITE $33.84
228 SB08086263 SWITCH BOARD RMP1 REV A $33.84
228 SB08086285 SWITCH CIRCUIT BOARD F/RMP1 REV B $27.26
229 SB03201014 LAMP LENS $27.26
241 SB03295081 LIGHT BUTTON, WHITE $33.84
274 SB03295035 JUNCTION BOX $33.84
472 SBE3344843 CONTROL BRACKET
This product has been discontinued
474 SB02300906 LIGHT SOCKET F/RMP1 & RMPE REV B
This product has been discontinued
474 SB02300820 LIGHT SOCKET F/RMP1 & RMPE REV A $57.60
474 SV05921 LED (LED MR16, GU10, Base 50 W) $32.40
477 SB03294776 TERMINAL COVER
This product has been discontinued
0 SB02300782 Fuse 4-Amp. 5mm X 20mm $27.26
0 SB02300674 Fuse Holder
This product has been discontinued
  SB03294779 WIRE CLAMP (A,B,C) $27.26
  331H Exterior Blower 600 CFM (need 332kr)
This product has been discontinued
  332H Exterior Blower 900 CFM (need 332kr)
This product has been discontinued
  335 Exterior Blower 1200 CFM (need 332kr)
This product has been discontinued
  336 Exterior Blower 1500 CFM (need 332kr)
This product has been discontinued
  332KR Mounting Plate for 10" duct w/ Power Cord for Exterior Blowers $293.40
  HLB3 In-Line Blower 280 CFM
This product has been discontinued
  HLB6 In-Line Blower 6000 CFM
This product has been discontinued
  HLB9 In-Line Blower 800 CFM
This product has been discontinued
  HLB11 In-Line Blower 1100 CFM
This product has been discontinued
  MD6TU Make up air damper 6" $210.45
  MD8TU Make up air damper 8" $223.39
  MD10TU Make up air damper 10" $309.64
  410 10" round by 2 foot Ducting ridged $27.17
  ARP6 Airflow Reducer to 6" round
This product has been discontinued
