Broan RP200 Two-Speed Pro Hood Parts

Listed below are the parts available for this model.

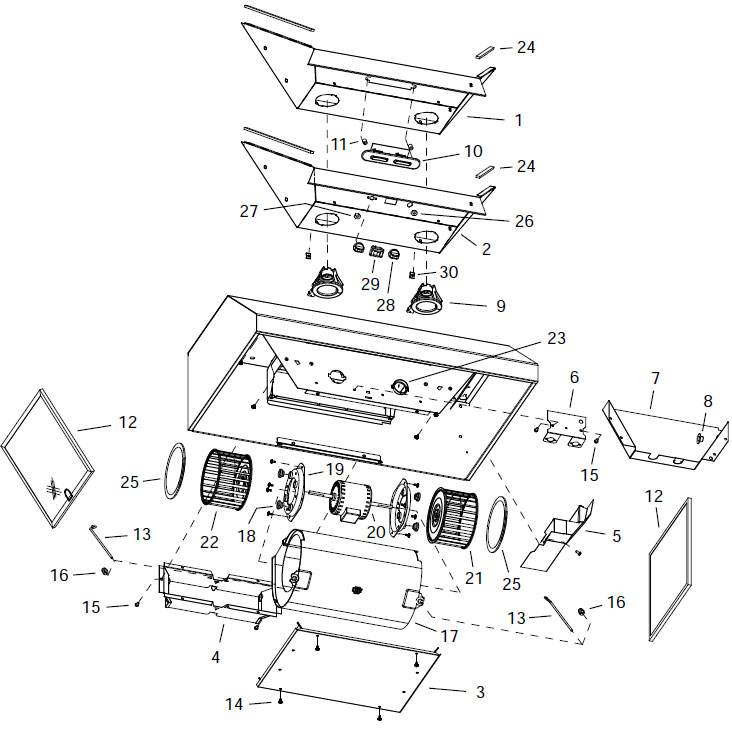

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan RP200 Two-Speed Pro Hood Parts
Broan RP200 Two-Speed Pro Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97017455 Aluminum Filter Kit (Contains 2 Filters) 9-7/8" x 11-11/16" $51.70
2 S97017456 Aluminum Filter Kit - Antimicrobial Protected (Contains 2 Filters) 9-7/8" x 11-11/16" $67.68
3 S97007662 Non-Ducted Filter Kit (Contains 2 Filters) 10x11-3/4 $84.60
4 SV05921 LED (LED MR16, GU10, Base 50 W) $32.40
5 S99271346 Light Trim and Socket $42.30
6 S97017312 Control Switches Black Kit - Includes Both Light and Fan Rocker Switches
This product has been discontinued
7 S97017264 Control Switches White Kit - Includes Both Light and Fan Rocker Switches
This product has been discontinued
8 S97017428 Heat Sentry Thermostat
This product has been discontinued
9 S99080597 Motor $116.56
10 S97007542 Complete Blower Assembly $412.20
11 S99020142 Blower Wheel CW $42.30
12 S99020143 Blower Wheel CCW $52.64
13 S98005212 Motor Retaining Ring (2 Required) $27.26
14 S98010342 Motor Ring Inlet $5.11
15 S99100491 Rubber Motor Mount (4 Required) $27.26
16 S99420464 Blower Mounting Rod (2 Required) $27.26
17 S99260476 Mounting Rod Nut (2 Required) $27.26
18 S97007656 Outlet Box Cover $31.02
19 S98006546 Wiring Cover for Sockets $33.84
20 S99770113 Wiring Harness $32.49
21 S99500323 PVC Foam for Front of Feature Panel $27.26
22 S97017222 Feature Panel Weldment - Black $50.96
23 S97017223 Feature Panel Weldment - White $51.70
24 S97017224 Feature Panel Weldment - Silver (Use on Stainless Steel Hood) $120.67
25 S97007631 Bottom Cover - Silver (Use on Stainless Steel Hood)
This product has been discontinued
26 S97007895 Bottom Cover - White
This product has been discontinued
27 S97009517 Bottom Cover - Black
This product has been discontinued
28 S97017429 Damper Assembly $56.40
29 S97005543 Parts Bag $27.26
