Broan S110FLUE Bathroom Exhaust Fan & Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan S110FLUE Bathroom Exhaust Fan & Light Parts

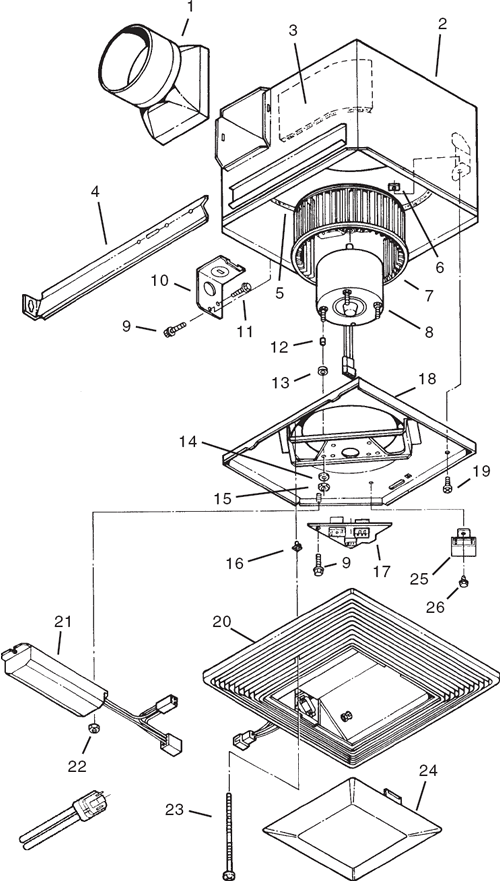

Broan S110FLUE Bathroom Exhaust Fan & Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97013415 Motor Mounting Bracket & Plate $12.31
  S99260567 Motor Mounting Nut $27.26
  S98003036 Housing Mounting Bracket $27.26
1 S97013349 4" Damper/Duct Connector
This product has been discontinued
4 S99100483 Rubber Mounting Gaskets (4 req.)
This product has been discontinued
7 S99020269 Blower Wheel
This product has been discontinued
8 S99080455 Motor
This product has been discontinued
8 S97013571 Motor/Blower Assembly - (Includes Key Nos. 7,8,13,14,15,16,18, 22 & 23)
This product has been discontinued
12 S99110736 Light Lens (not included with grille) 6 3/4 x 6 3/4 x 1
This product has been discontinued
13 S99150565 Grille Screw - 2 Required (5" Long) $27.26
15 S99420631 White Plastic Grille Nut (2 req.) $27.26
18 S97010732 Grille Assembly - S110FLUE-A, with both Sockets **(no lens)
This product has been discontinued
18 S97016319 Grille Assembly - S110FLUE-B, with both Sockets **(no lens) 1 left
This product has been discontinued
19 S97016320 Ballast - S110FLUE-B Only, Used for units with 26 Watt Bulb
This product has been discontinued
25 S97010730 Bulb 18 Watt - S110FLUE-A Only $68.63
25 S99271311 Bulb 18 Watt - S110FLUE-B 2 PIN $26.55
