Broan S110U Bathroom Exhaust Fan 110 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan S110U Bathroom Exhaust Fan 110 Cfm Parts

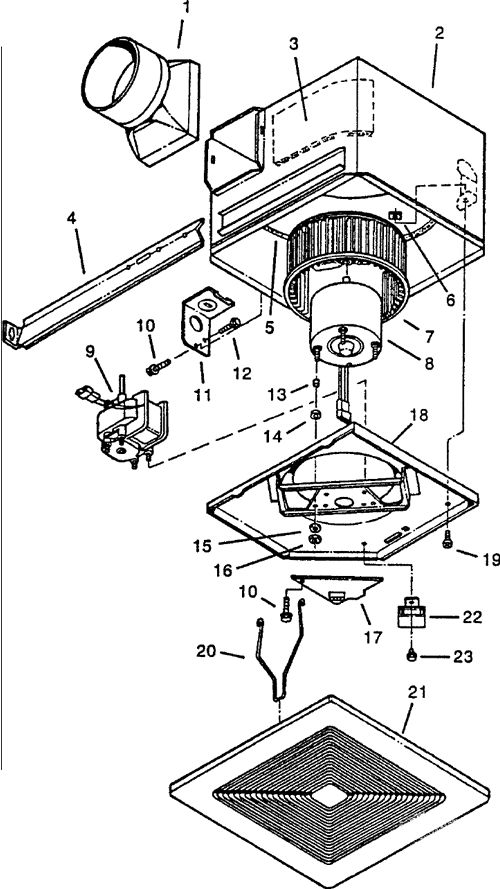

Broan S110U Bathroom Exhaust Fan 110 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97013401 Motor Mounting Bracket & Plate $19.30
  S99260567 Motor Mounting Nut $27.26
  S98003036 Housing Mounting Bracket $27.26
  S97013570 Motor/Blower Assembly (Includes Key Nos. 7,8,13,14,15, &17)
This product has been discontinued
1 S97013349 4" Damper/Duct Connector
This product has been discontinued
4 S99100483 Rubber Mounting Grouments (4 req.) $27.26
7 S99020269 Blower Wheel
This product has been discontinued
8 S99080450 Modified Motor ccw 5/16d w/ 1 1/4 lenghth must have the blade s99020269 $172.96
15 S97013561 Outlet Box Cover with Receptacle $11.38
18 S99140190 Grille Spring 2-Required (Sold each) $27.26
19 S97013402 Grille Assembly With Springs (11 1/2 X 11 1/2) SEE FG701 W/ MODIFICATIONS
This product has been discontinued
  FG701 Upgrade Grille Assembly, 13.25x13.25 w/ 7&10" spring gap $24.10
