IronAway A-46 Ironing Center Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

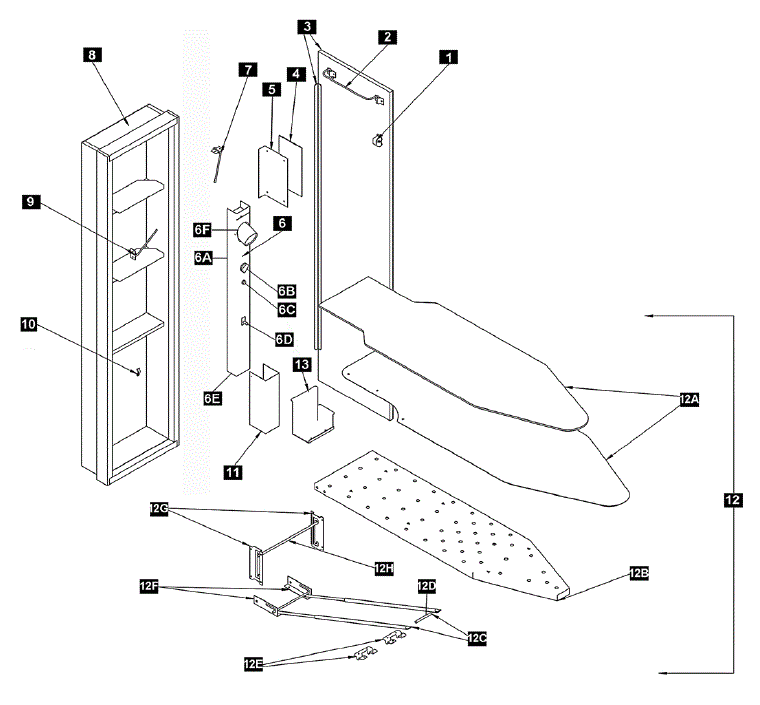

IronAway A-46 Ironing Center Parts breakout large

Part Key	Part Number	Description	Unit Price
12A	001500	Cover & Pad Set	$49.75
1	A46WDU	Complete New Unit. Model comes with a Maple Veneer Door Left Hinged. For Additional Options, Contact Customer Service	$429.52
	001530	Touch Up Paint Kit	$15.00
12B	000841	46” Ironing Board	$97.50
12C	001514	Double Leg Assembly	$52.50
12D	000823	8 ¾” x ¼” A-46 insert	$9.00
12E	001508	Leg Holding Bracket Assembly	$6.00
12H	000817	12 ¾” x 5/16” Axle Rod	$11.25
13	001542	Hot Iron Rest Assembly	$56.42
1	001504	Roller Catch Assembly	$9.00
2	001541	Garment Bar Assembly	$18.75
3	000671	A-46 Birch Door Hinged	$118.50
3A	001502	49” Hinge Assembly	$31.88
3B	000670	15” x 60 5/8” x ¾” Birch Door	$86.63
6A	000218	60 Minute Timer – Mallory Timer M204	$75.00
6B	000265	White Timer Knob	$15.84
6C	000226	Pilot Light	$9.00
6D	000231	White Disconnect Switch	$16.50
6E	000230	White Electrical Outlet	$12.00
6F	000224	Snap-In Lamp Holder	$11.25
7	001509	Right Iron Retainer Assembly	$9.00
9	001539	LH Board Retainer Assembly	$9.00
12	001517	46” Board Assembly	$225.00
	001505	Coat Hook	$12.00
	000231	Cherry Swtich	$16.50
