IronAway AE-42 Ironing Center Parts, Swival Board, Lights, Timer, Plug, Auto Shut Off

Listed below are the parts available for this model.

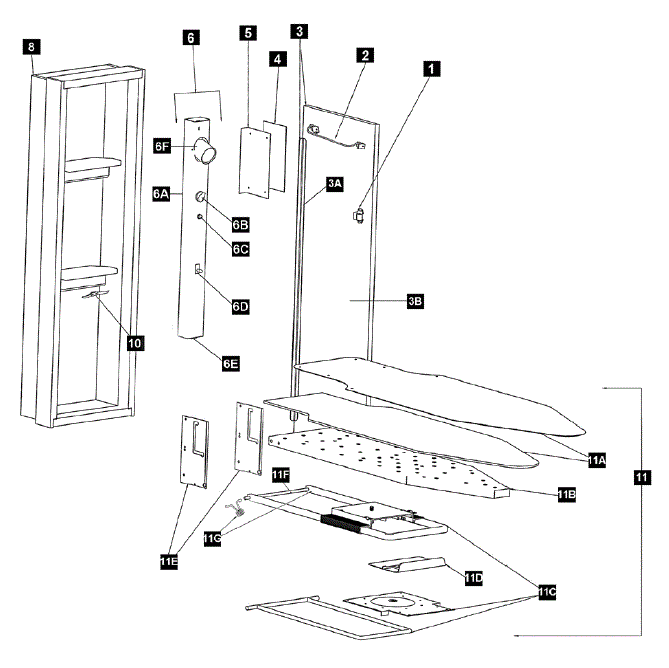

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

IronAway AE-42 Ironing Center Parts, Swival Board, Lights, Timer, Plug, Auto Shut Off
IronAway AE-42 Ironing Center Parts, Swival Board, Lights, Timer, Plug, Auto Shut Off
 breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
11A 001500 Cover & Pad Set $58.50

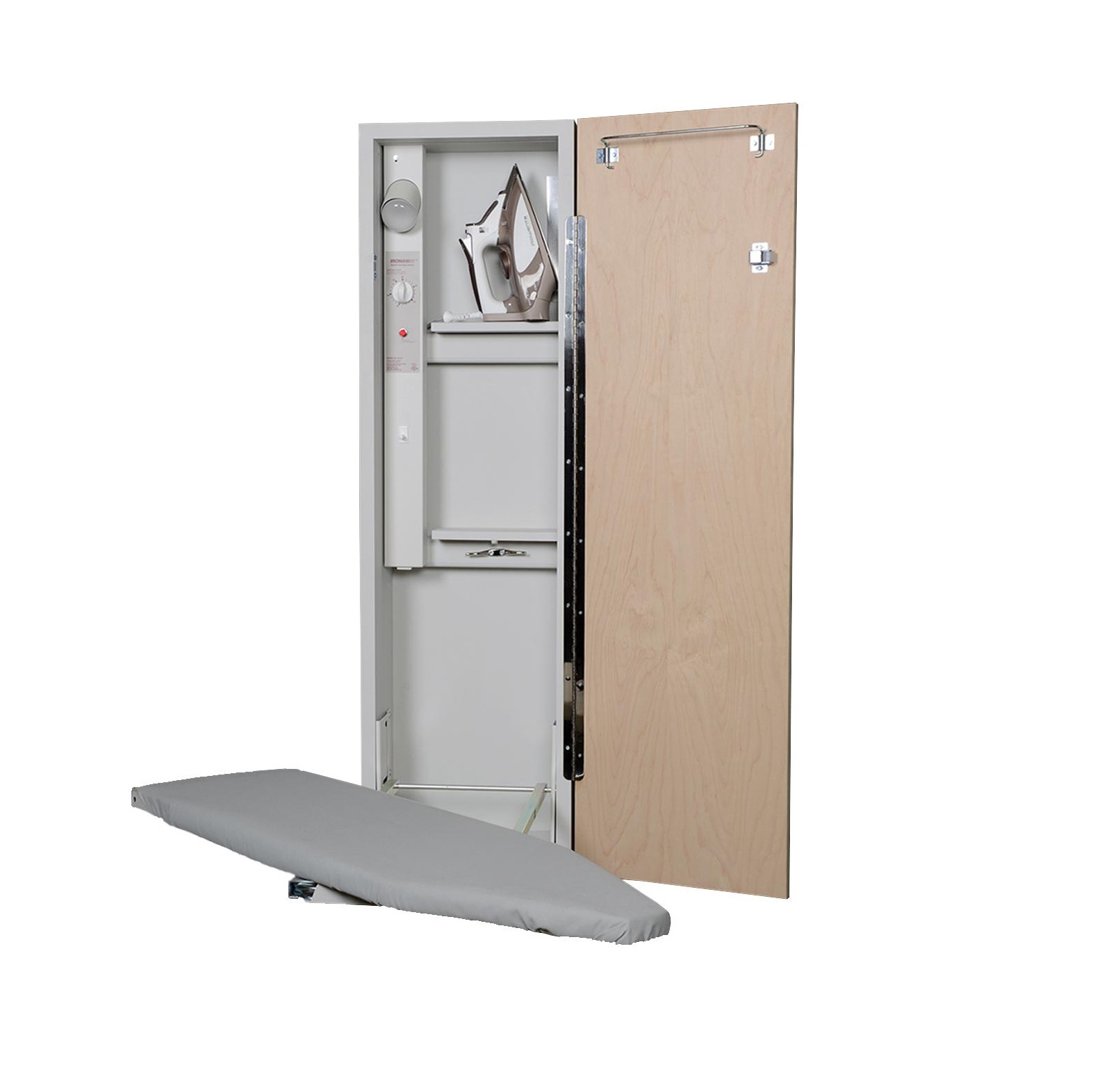

  AE42WDU Complete New Unit. Model comes with a Maple Veneer Door Right Hinge. For Additional Options, Contact Customer Service $529.74
  000269 May tag Premium Iron $149.99
1 001504 Roller Catch Assembly $9.00
2 001541 Garment Bar Assembly $18.75
3 000669 AE-42 Flat Maple Vaneer Wood Door 15 x 52 W/Door Hinged $70.32
3A 001503 39” Hinge Assembly $31.88
3B 000668 Flat Maple Veneer 15” x 52” x ¾” Wood Door (no hinge) $38.45
3C 000763 Raised Panel White Door 15 x 52 (no hinge) $228.05
3D 000764 Raised White Panel Door With HINGE 15 x 52 $259.92
3E 000765 Flat White Door 15 x 52 (no hinge) $75.90
3F 000766 Flat White Door with Hinge 15 x 52 $107.78
3G 000769 Raised Maple Door 15 x 52 (no hinge) $228.05
3H 000770 Raised Panel Maple Door w/ Hinge 15 x 52 $259.92
6 001574 AE-42 Raceway Assembly $232.50
6A 000218 60 Minute Timer – Mallory Timer M204 $75.00
6B 000265 White Timer Knob $15.84
6C 000226 Pilot Light $9.00
6D 000231 White Disconnect Switch $16.50
6E 000230 White Electrical Outlet $12.00
10 001540 Cord Wrap Assembly $13.26
11 001525 42” Swivel Board Assembly $449.97
11C 000802 Swivel Mechanism $119.00
11F 000897 12 3/4 inch x 3/8 inch Axle Rod $6.00
11B 000843 42” Ironing Board $97.50
11E 000881 Swivel Bracket – Pair $45.00
11G 001549 Swivel Board Spring Assembly – L&R $37.50
  001530 Touch Up Paint Kit $15.00
