IronAway ANE-46 Ironing Center Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

IronAway ANE-46 Ironing Center Parts

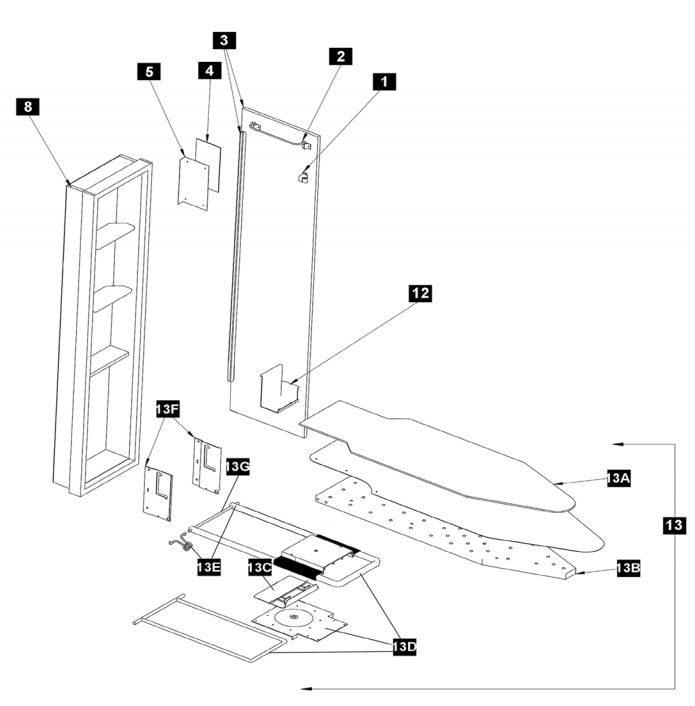

IronAway ANE-46 Ironing Center Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  000269 Maytag Premium Steam Iron $149.99
  ANE46WDU Complete New ANE-46 w Flat Maple Veneer Wood Door - Right Hand Hinge $496.10
13A 001500 Cover & Pad Set $58.50
3A 001502 49” Hinge Assembly $31.88
1 001504 Roller Catch Assembly $9.00
2 001541 Garment Bar Assembly $18.75
3 000671 AE-46 Flat Maple Vaneer Wood Door w/Hinge 15 x 60 5/8 $118.50
3B 000670 Flat Maple Vaneer Wood Door NO/hinge 15” x 60 5/8” x ¾” $86.63
3C 000655 Raised Maple Panel Wood Door NO/hinge 15” x 60 5/8” x ¾” $223.58
3D 000663 Raised Maple Panel Wood Door with/hinge 15” x 60 5/8” x ¾” $255.45
3E 000740 Flat White Wood Door NO/hinge 15” x 60 5/8” x ¾” $112.11
3F 000741 Flat White Wood Door with /hinge 15” x 60 5/8” x ¾” $143.99
3G 000755 Raised White Wood Door NO/hinge 15” x 60 5/8” x ¾” $255.45
3H 000756 Raised White Wood Door With/hinge 15” x 60 5/8” x ¾” $223.58
12 001542 Hot Iron Rest Assembly $56.42
13 001543 46” Swivel Board Assembly $449.97
13B 000841 46” Ironing Board Cool Gray $97.50
13E 001549 Swivel Board Spring Assembly – L&R $37.50
13F 000881 Swivel Bracket Pair $45.00
13D 000802 Swivel Mechanism $119.00
13B 001552 46" Replacement Board w/Cover $243.00
13G 000897 12 3/4 inch x 3/8 inch Axle Rod $6.00
13E 001549 Swivel Board Spring Assembly - L&R $37.50
13C 001613 Plastic Swivel Cover $9.00
  001530 Touch up paint kit $15.00
