IronAway E-342 Ironing Center Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

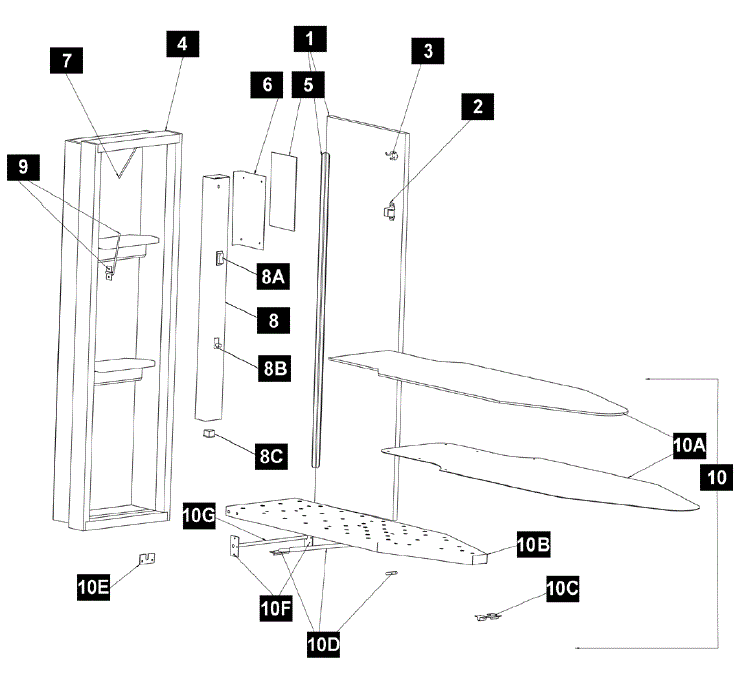

IronAway E-342 Ironing Center Parts breakout large

Part Key	Part Number	Description	Unit Price
10A	001500	Cover & Pad Set	$49.75
10B	000843	42” Ironing Board	$97.50
10C	001508	Leg Bracket Assembly	$6.00
10D	001515	Single Leg Assembly	$47.50
10F	001513	V5 Pivot Plate Assembly	$13.50
10G	000817	12 ¾” x 5/16” Axle Rod for E/NE	$11.25
	000228	Lighted Rocker Switch This product has been discontinued
1A	001503	39” Hinge Assembly	$31.88
2	001504	Roller Catch Assembly	$9.00
7	001509	Right Iron Retainer Assembly	$9.00
8B	000231	White Disconnect Switch	$16.50
8C	000230	White Electrical Outlet	$12.00
9	001539	LH Board Retainer Assembly	$9.00
10	001518	42” Board Assembly	$187.50
	001530	Touch up Paint Kit	$15.00
	001505	Coat Hook	$12.00
	000231	Cherry Switch	$16.50
