IronAway E-46 Ironing Center Parts Electrical, No Swival

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

IronAway E-46 Ironing Center Parts Electrical, No Swival

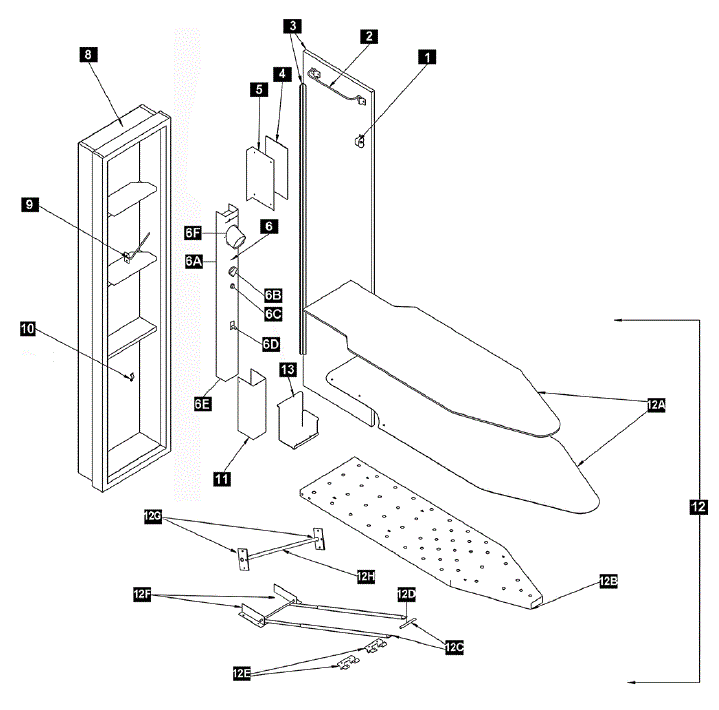

IronAway E-46 Ironing Center Parts Electrical, No Swival breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  000269 Maytag Premium Steam Iron $149.99

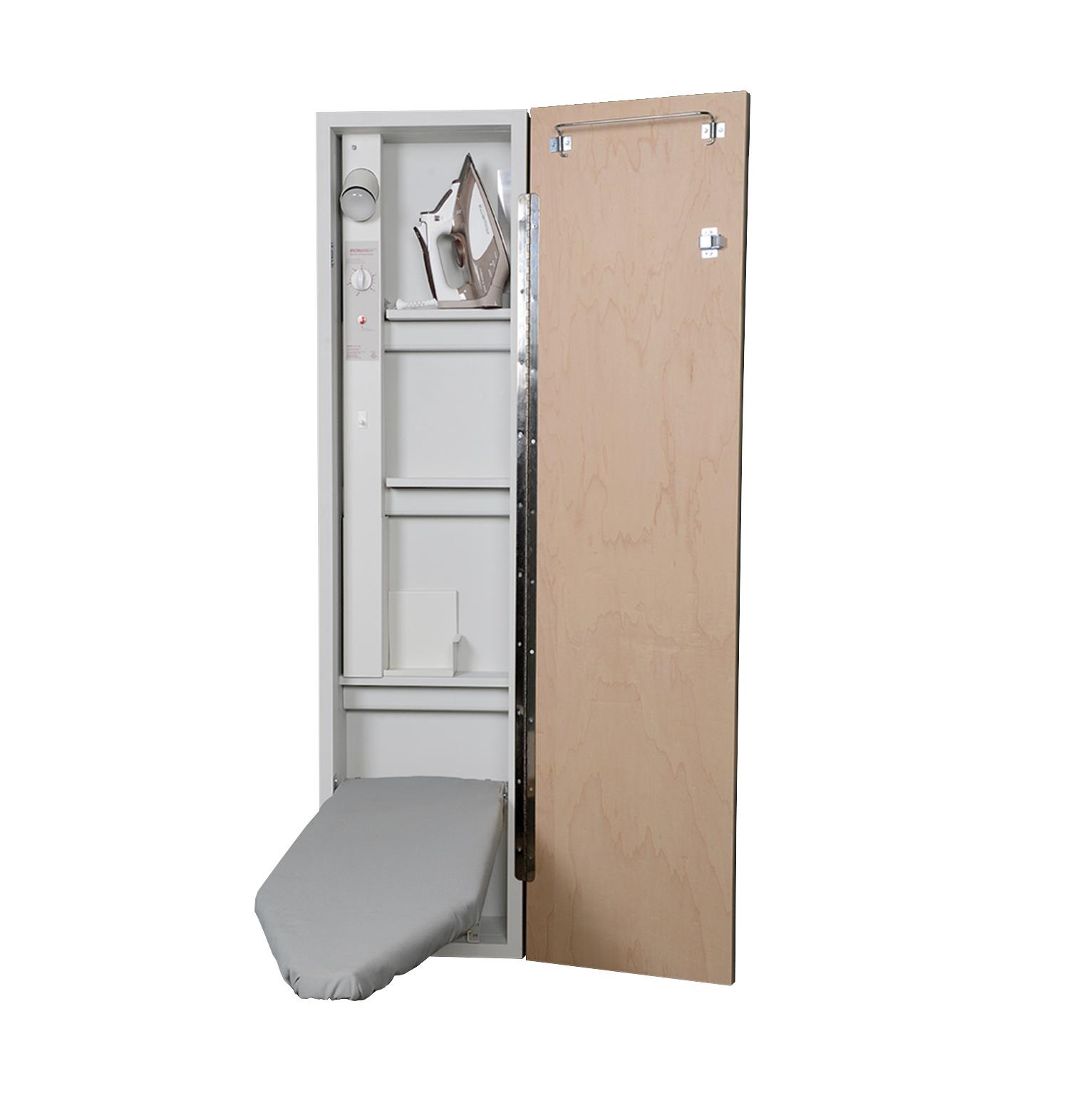

  E46WDU Complete New Unit. Model comes with a Maple Veneer Door Left Hinged. For Additional Options, Contact Customer Service $510.92
12A 001500 Cover & Pad Set $58.50
3A 001502 49” Hinge Assembly $31.88
1 001504 Roller Catch Assembly $9.00
2 001541 Garment Bar Assembly $18.75
3B 000671 E-46 Flat Maple Vaneer Wood Door W/ Hinge 15 x 60 5/8 $118.50
3D 000669 Flat Maple Vaneer Wood Door W/ Hinge 15 x 60 5/8 $70.32
3E 000655 Raised Maple Wood Door NO/ Hinge 15 x 60 5/8 $223.58
3F 000663 Raised Maple Wood Door W/ Hinge 15 x 60 5/8 $255.45
3G 000740 Flat White Wood Door No/ Hinge 15 x 60 5/8 $112.11
3H 000741 Flat White Wood Door W/ Hinge 15 x 60 5/8 $143.99
3I 000755 Raised White Wood Door NO/ Hinge 15 x 60 5/8 $255.45
3J 000756 Raised White Wood Door With/ Hinge 15 x 60 5/8 $223.58
3C 000670 Flat Maple Vaneer Wood Door NO hinge15” x 60 5/8” x ¾” $86.63
6 001573 E46 Raceway Assembly $232.50
6A 000218 60 Minute Timer – Mallory Timer M204 $75.00
6B 000265 White Timer Knob $15.84
6C 000226 Pilot Light $9.00
6D 000231 White Disconnect Switch $16.50
6E 000230 White Electrical Outlet $12.00
6F 000224 Snap-In Lamp Holder $11.25
6E 000918 Electrical Cord Cover $12.75
12D 000852 Double Male Leg $24.50
12D 000853 Double Female Leg $24.50
9 001539 LH Board Retainer Assembly $9.00
12B 000841 46” Ironing Board Cool Gray $97.50
12C 001514 Double Leg Assembly $52.50
12E 001508 Leg Holding Bracket Assembly / Pair $6.00
12F 001568 Bottom Leg Bracket Assembly $22.50
12G 001513 Side Bracket Assembly $13.50
12H 000817 12 ¾” x 5/16” Axle Rod $11.25
12A 001552 46" Replacement Board w/Cover $243.00
13 001542 Hot Iron Rest Assembly $56.42
  000435 Iron Cord Clip $1.75
  000809 8 9/16 inch x 1/4 inch A-46 Insert / Pair $6.25
  001530 Touch Up Paint Kit $15.00
