IronAway IAW-42 Ironing Center Parts Space Saving Surface or Flush Mount

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

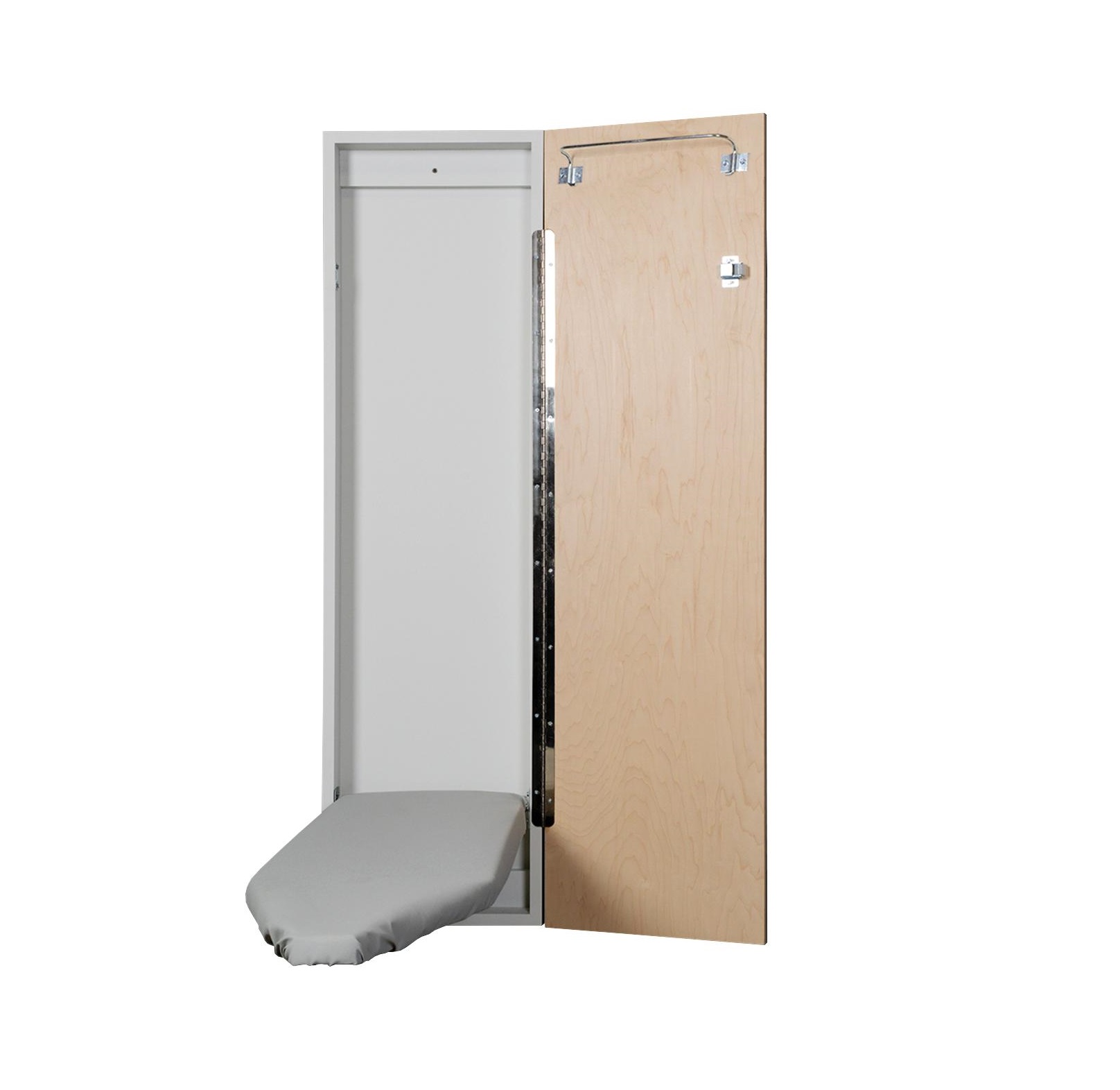

IronAway IAW-42 Ironing Center Parts Space Saving Surface or Flush Mount

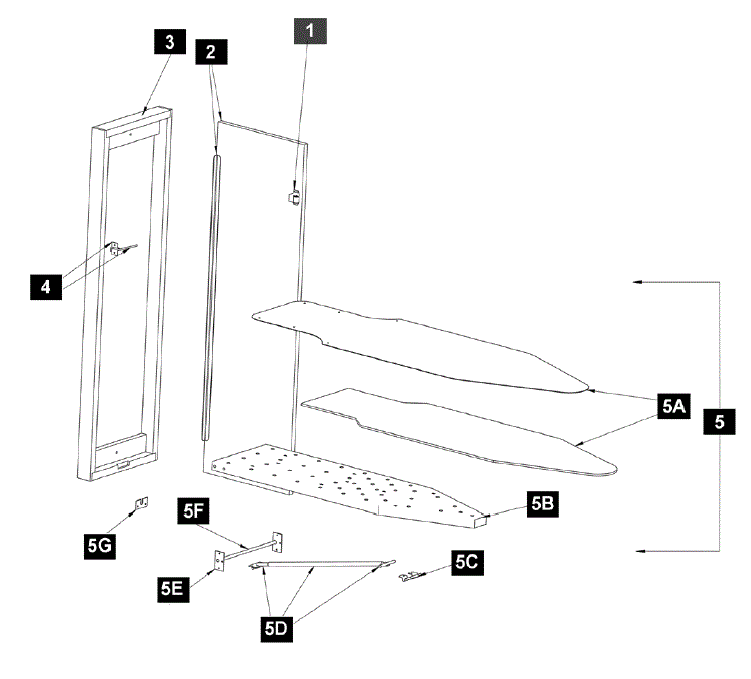

IronAway IAW-42 Ironing Center Parts Space Saving Surface or Flush Mount breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  IAW42WDU Complete New Unit. Model comes with a Maple Veneer Door Left Hinged. For Additional Options, Contact Customer Service $344.84
  000269 Maytag Premium Steam Iron $149.99
5A 001500 Cover & Pad Set $49.75
1 001504 Roller Catch Assembly $9.00
2A 001503 39” Hinge Assembly $31.88
2B 000771 Flat Maple Veneer Door IAW 51 x 14 1/2 inch x 3/4 inch No Hinge $38.45
2C 000772 Flat Maple Veneer Door IAW 51 x 14 1/2 inch x 3/4 inch with Hinge $70.32
2D 000773 Flat White Door IAW 51 x 14 1/2 inch x 3/4 inch NO Hinge $75.90
2E 000774 Flat White Door IAW 51 x 14 1/2 inch x 3/4 inch With Hinge $107.78
  001566 Blum Hinge & Screw Assembly to put Cabinet flush in wall $52.08
4 001539 LH Board Retainer Assembly $9.00
5B 001518 42” Board Assembly $187.50
5B 000843 42” Ironing Board Cool Gray $97.50
5C 001508 Leg Bracket Assembly $16.00
5D 001515 Single Leg Assembly $47.50
5E 001513 Side Bracket Assembly $13.50
5F 000817 12 ¾” x 5/16” Axle Rod for E/NE $11.25
5C 000807 42 Insert 2 x 1/4 $9.00
5D 000854 Single Male Leg $11.25
5E 000855 Single Female Leg $11.25
5F 001512 V4 Assembly $7.50
  001530 Touch up paint kit $15.00
