IronAway NE-242 Ironing Center Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

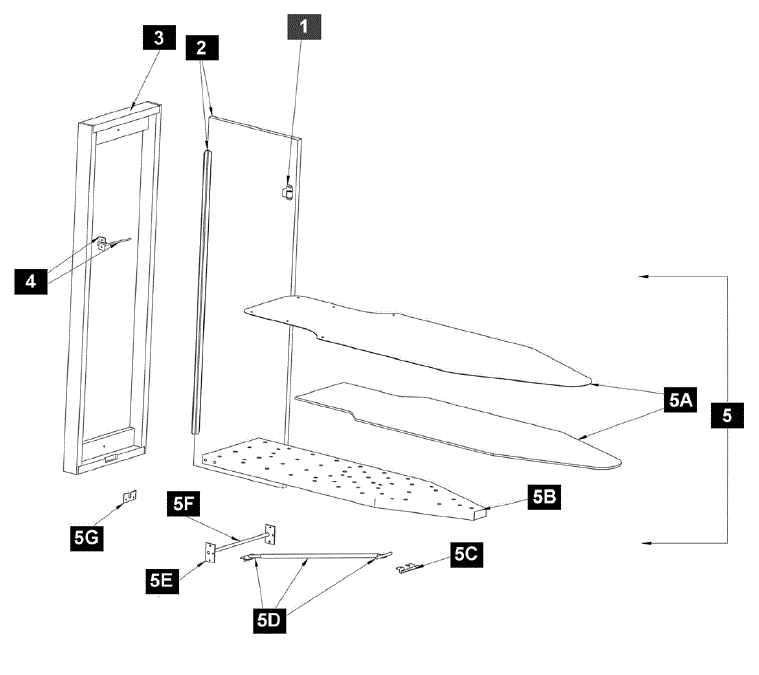

IronAway NE-242 Ironing Center Parts breakout large

Part Key	Part Number	Description	Unit Price
5A	001500	Cover & Pad Set	$49.75
	NE242WDU	Complete New Unit. Model comes with a Maple Veneer Door Left Hinged. For Additional Options, Contact Customer Service This product has been discontinued
	001530	Touch up paint kit	$15.00
5B	000843	42” Ironing Board	$97.50
5C	001508	Leg Bracket Assembly	$16.00
5D	001515	Single Leg Assembly	$47.50
5E	001513	V5 Pivot Plate Assembly	$13.50
5F	000817	12 ¾” x 5/16” Axle Rod for E/NE	$11.25
1	001504	Roller Catch AssemblyRoller Catch Assembly	$9.00
2A	001503	39” Hinge Assembly	$31.88
4	0001539	LH Board Retainer Assembly	$5.40
5	001518	42” Board Assembly	$187.50
	001505	Coat Hook	$12.00
