IronAway NE-46 Ironing Center Parts Non-Electric

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

IronAway NE-46 Ironing Center Parts Non-Electric

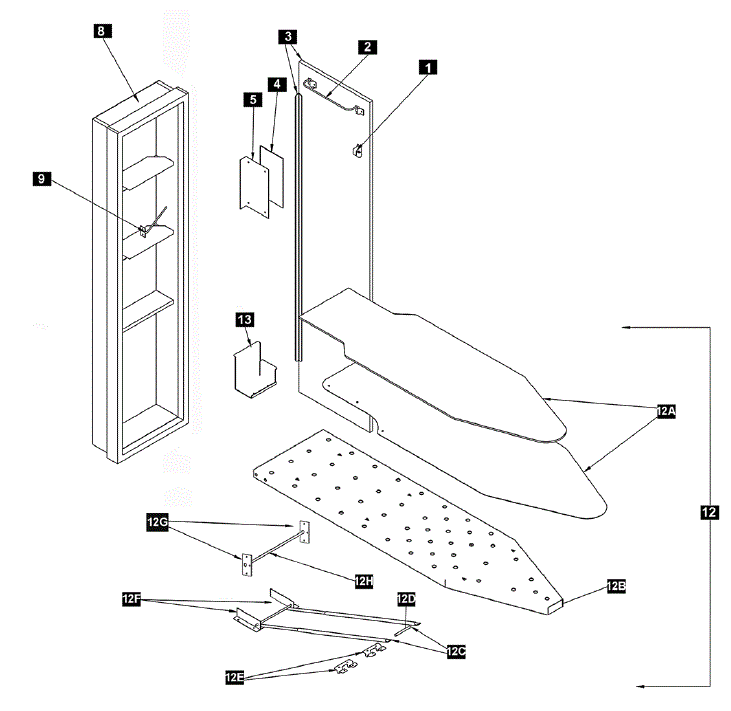

IronAway NE-46 Ironing Center Parts Non-Electric breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  000269 Maytag Premium Steam Iron $149.99
12A 001500 Cover & Pad Set $49.75
  NE46WDU Complete New Unit. Model comes with a Maple Veneer Door Left Hinged. For Additional Options, Contact Customer Service $418.60
1 001504 Roller Catch Assembly $9.00
2 001541 Garment Bar Assembly $18.75
3A 001502 49” Hinge Assembly $31.88
3B 000670 Flat Maple Veneer Wood Door NO hinge 15” x 60 5/8” x ¾” $86.63
3C 000671 Flat Maple Veneer Wood Door With hinge 15” x 60 5/8” x ¾” $118.50
3D 000655 Raised Maple Panel Wood Door NO hinge 15” x 60 5/8” x ¾” $223.58
3E 000663 Raised Maple PanelWood Door With/Hinged 15 x 60 5/8 $255.45
3F 000740 Flat White Wood Door NO hinge 15” x 60 5/8” x ¾” $112.11
3G 000741 Flat White Wood Door W/Hinged 15 x 60 5/8 $143.99
3H 000755 Raised White Panel Wood Door NO hinge 15” x 60 5/8” x ¾” $255.45
3I 000756 Raised White PanelWood Door With/Hinged 15 x 60 5/8 $223.58
  000809 8 9/16 inch x 1/4 inch A-46 Insert / Pair $6.25
9 001539 LH Board Retainer Assembly $9.00
12B 000841 46” Ironing Board Cool Gray $97.50
12E 001508 Leg Holding Bracket Assembly / Pair $6.00
12F 001568 Bottom Leg Bracket Assembly $22.50
12G 001513 Side Bracket Assembly $13.50
12H 000817 12 ¾” x 5/16” Axle Rod for E/NE $11.25
12C 000852 Double Male Leg $11.25
12D 000853 Double Female Leg $11.25
12# 001569 Double Leg Assembly $52.50
13 001542 Hot Iron Rest Assembly $56.42
  001530 Touch up Paint Kit $15.00
