Kenmore 50132 Kitchen Rangehood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Kenmore 50132 Kitchen Rangehood Parts

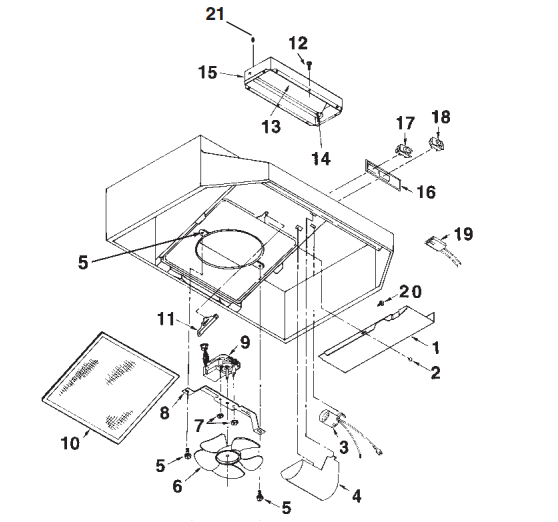

Kenmore 50132 Kitchen Rangehood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S98006621 Outlet Box Cover $27.26
2 S99170245 #8 x 3/8 Sheet Metal Screw* $18.00
4 S99110437 Light Lens $27.26
5 S97011217 Screw/Nut Kit (Includes 2 - #10-16 x .500 screws and 2 - #10-16 sheet metal nuts) $34.78
6 S99020287 Fan Blade $27.26
7 S99260428 #6-32 Locking Nuts* (2 Required) $18.00
8 S98005568 Motor Mounting Bracket $27.26
9 S97011220 Motor Assembly, 41000 Series (Includes Key Nos. 6, 7, & 8) $56.40
9 S97016135 Motor Assembly, 41000MX Series (Includes Key Nos. 6, 7, & 8) E $29.46
10 S97007696 Ductfree Microtek™ Filter System I $27.26
11 S99420472 Filter Retainer $27.26
12 S97010709 Nameplate - Black $27.26
13 S97016970 2-Speed Motor Switch - Black (Includes Key No. 14) $42.30
13 S97016971 2-Speed Motor Switch - White (Includes Key No. 14) $27.26
14 S97016970 Light Switch - Black (Includes Key No. 13) $42.30
14 S97016971 Light Switch - White (Includes Key No. 13) $27.26
15 S97005678 Motor Receptacle with Wires $33.84
16 S99150471 #10-32 x 1/2 Green Ground Screw* $18.00
17 S93400038 Grommet $0.68
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40

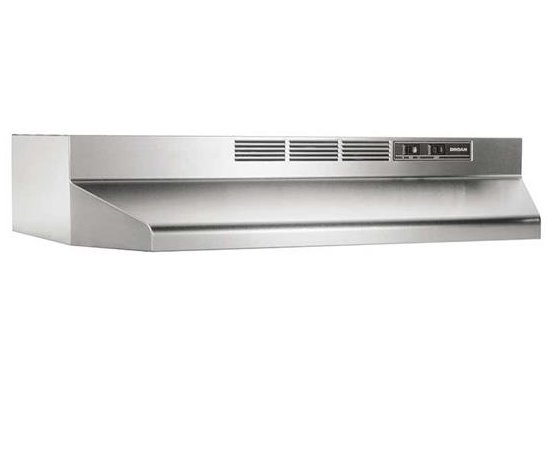

* 412404 Complete New Unit $173.26
