Kenmore 50591 White, 48" Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Kenmore 50591 White, 48" Range Hood Parts

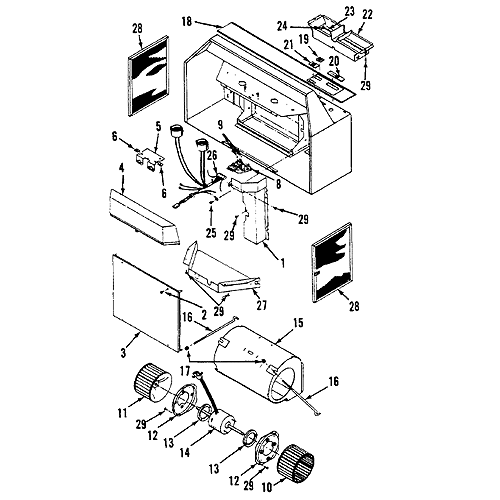

Kenmore 50591 White, 48" Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* 894801 Complete New Unit
This product has been discontinued
0 HCK44 Cord Kit with 6' cord and plug $42.30
0  S97007542 BLOWER ASSEMBLY (INCLUDES KEY #'S 10-15, 29) $412.20
1  S97007656 Outlet Box Cover $31.02
3  S97007631 Bottom Cover - Silver (For Stainless Hood)
This product has been discontinued
3  S97007895 Bottom Cover - White
This product has been discontinued
3  S97009517 Bottom Cover-Black
This product has been discontinued
4  S99110605 Light Lens $33.84
5  S97007901 Heat Sentry Thermostat $66.60
8  S97011801 Fan/Light Switch Board
This product has been discontinued
10  S99020142 SRV WHEEL 5 3/4N STRIP TYPE C $42.30
11  S99020143 SRV WHEEL 5 3/4N STRIP TYPE C $52.64
12  S98005212 Motor Retaining Ring 2-Required $27.26
14  S97018026 Motor $166.38
13  S99100491 MOTOR MOUNT RUBBER BROAN $27.26
15  S97007313 BLWR WLDMNT AUTO BRN 500 $49.82
16  S99420464 Blower Mounting Rod $27.26
17  S99260476 Mounting Rod Nut $27.26
18  S97007657 Black Nameplate 30",33" $206.80
18  S97007658 Black Nameplate 36",39",
This product has been discontinued
18  S97007659 Black Nameplate 42" $146.64
18  S97007660 Black Nameplate 48" $52.90
18  S97013360 White Nameplate 30",33"
This product has been discontinued
18  S97013361 White Nameplate 48"
This product has been discontinued
18  S97013976 White Namplate 36"
This product has been discontinued
18  S97013977 White Nameplate 42"
This product has been discontinued
19  S97014357 WHITE KNOB KIT (INCLUDES KEY #'S 19, 20 &21) $33.84
19  S97014358 BLACK KNOB KIT (INCLUDES KEY #'S 19, 20 & 21)
This product has been discontinued
22  S97006078 Damper Assembly $23.53
26  S97007570 WIRE HARNESS $52.64
27  S98006546 SRV LIGHT SOCKET COVER DLX PT $33.84
28  S97007894 Aluminum Filter Kit (Contains 2 Filters) 9 7/8 X 11 5/8 X 3/8 $33.84
