Kenmore 50595 Chimney Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Kenmore 50595 Chimney Range Hood Parts

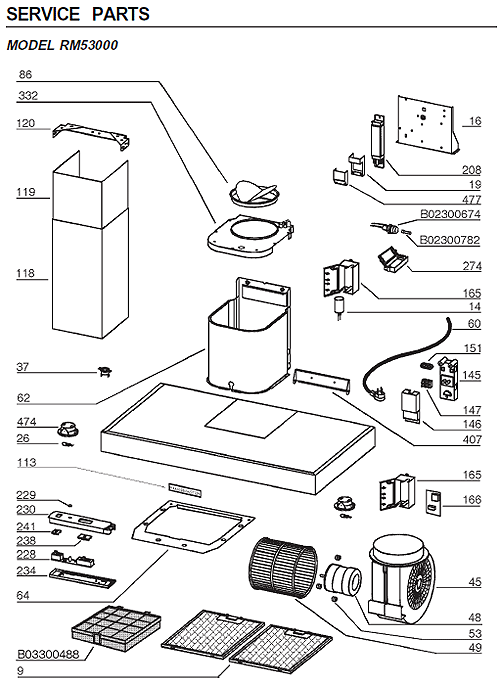

Kenmore 50595 Chimney Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* RM533004 Complete New Unit $894.65
0 HCK44 Cord Kit with 6' cord and plug $42.30
9 SB08087294 Grease Filter $27.26
9 SB03300488 Non-Ducted Filter 8-7/8" x 9½" (Optional) $97.76
14 SB02300233 Capacitor $27.26
16 SBE3346354 Electrical Box Support $12.13
19 SB03295005 Transformer Protection
This product has been discontinued

26 SB02300891 Halogen Bulb (G4 Base, 12 Volt, 20 Watt) $18.95
37 SB02300787 Heat Sentry $59.22
45 SBW0000019 Blower Housing
This product has been discontinued

48 SB02310203 Motor
This product has been discontinued

48 SB06002013 Blower Assembly (Includes Key No. 45, 48, 49, 53) only works with B,C,& D Revisions. $331.82
49 SB03295076 Wheel $51.70
53 SB03204177 Rubber Washer
This product has been discontinued

60 SB02300249 Feeder Cable $27.26
62 SB08091462 Blower Mounting Cover $27.26
86 SB08088378 Damper/Duct Connector witrh Flaps and Springs $27.26
113 SB03202433 Rangemaster Logo (replaced by V03493) $5.38
118 SBE3347192 ower Flue F/RM53000 $140.06
119 SBE3347193 Upper Flue F/RM53000 $132.54
120 SB08091367 Upper Flue Mounting Bracket $33.84
145 B032920170 Feeder Cable Contn Box $8.50
146 B032920180 Cable Connection Box Cover $0.90
147 SBR2300132 4 Wire Terminal Block $27.26
151 SB032920200 Elec Box Wires Stop
This product has been discontinued

165 SB03295008 Electrical Box with Cover $33.84
166 SB08086668 Heat Sentry Relay PM390HS $84.60
208 sb02300739 Transformer $135.36
228 SB08086279 Switch Controls Board $27.26
229 SB03201014 Lamp Lens $27.26
230 SB03295075 Switchboard Box Cover $27.26
234 SB03295072 Control Board Box $27.26
238 SB03295074 Slide Button for Motor Switch $27.26
241 SB03295073 Slide Button for Light Switch $27.26
274 SB03295035 Junction Box $33.84
332 SB03295009 Cover $27.26
407 SBE3344985 Blower Support Bracket
This product has been discontinued

474 SB02300791 Lens & Chrome Ring w/ Socket & Lamp Hsg $33.84
477 SB03295006 Terminal Cover $38.54
0 SB02300782 Fuse 4-Amp. 5mm x 20mm $27.26
0 SB02300674 Fuse Holder
This product has been discontinued
