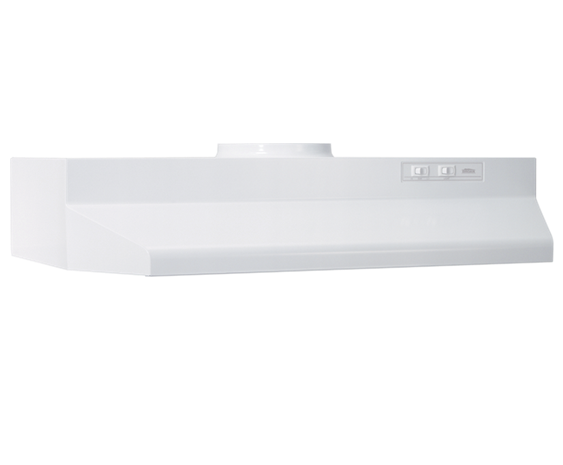

Kenmore 5299 White, Under Cabinet Hood, 190 CFM

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Kenmore 5299 White, Under Cabinet Hood, 190 CFM

Kenmore 5299 White, Under Cabinet Hood, 190 CFM breakout large

Part Key	Part Number	Description	Unit Price
*	422401	Complete New Unit	$114.57
0	35	Wall Hanging Kit	$113.40
1	S98006621	Outlet Box Cover	$27.26
2	S99170245	#8-18 x 3/8 Sheet Metal Screw*	$18.00
4	S99110437	Light Lens	$27.26
5	S97011217	Screw/Nut Kit (Includes 2 - #10-16 x .500 screws and 2 - #10-16 sheet metal nuts)	$34.78
6	S99020272	Fan Blade	$27.26
7	S99260428	#6-32 Locking Nuts* (2 Required)	$18.00
8	S98005568	Motor Mounting Bracket	$27.26
9	S97012248	Motor Assembly (Includes Key Nos. 6, 7, & 8)	$80.84
10	S97006931	Aluminum Filter	$27.26
11	S99420472	Filter Retainer	$27.26
16	S97010709	Nameplate - Black	$27.26
17	S97016970	2-Speed Motor Switch - Black (Includes Key No. 18)	$42.30
17	S97016971	2-Speed Motor Switch - White (Includes Key No. 18)	$27.26
18	S97016970	Light Switch - Black (Includes Key No. 17)	$42.30
19	S97005678	Motor Receptacle with Wires	$33.84
20	S99150471	#10-32 x 1/2 Green Ground Screw*	$18.00
21	S97010792	7” Round Damper (Model 42000D only)	$42.30
